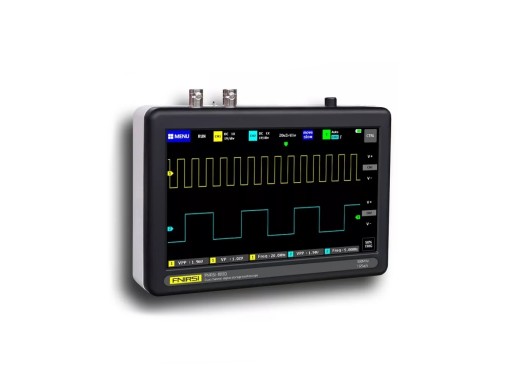

Fnirsi 1013D oscilloscope
Details
The Fnirsi 1013D is an affordable tablet oscilloscope. With 2 channels and 1GSa/s sample rate, it can compete with much more expensive models. While the oscilloscope is rated 100MHz, the practical bandwidth is closer to 20MHz.
The 1013D is compact with its 7” touch screen. The 6000mAh internal battery provides 4 hours of continuous use. The only trigger mode available is edge mode and the memory is limited to 240kbts, much lower than other oscilloscopes. This makes the oscilloscope not suitable for complex measurements, but for users who seek a compact solution to observe signals, the Fnirsi 1013D is a great product.
Specifications
| Bandwidth | 100 MHz (theoretical) 20 MHz (practical) |
| Channels | 2 |
| Memory depth | 240 kpts (divided by number of active channels) |
| Sample rate | 1 GS/s |
| Vertical scale | 50 mV/div - 500 V/div |
| Horizontal scale | 10 ns/div - 50 s/div |
| Display | 7" TFT LCD touchscreen |
| Dimensions | 180 x 120 x 40 mm |
| Weight | 600 g |
Accessories
The Fnirsi 1013D comes with:- Charging adapter
- 2x Matching 100MHz probes (1X and 10X)
- 1x Type-C USB cable
Pros and cons
- Easy to use
- Budget friendly
- Limited trigger levels
Downloads
| Fnirsi 1013D - User manual |  (4.17 MB) | Download |
