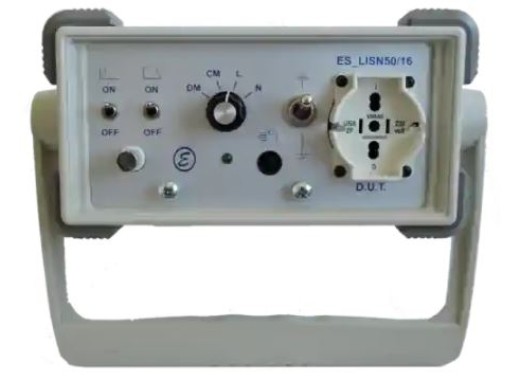

ELab AC LISN 50/16

Using the built-in DM, CM and single line measurement, developers can easily locate the origin of a noise problem. The built-in limiter protects your spectrum analyzer against transients.

Measure for the EN61000-6-3/4 according to CISPR 16-1-2.

• 50μH / 250μH + 5Ω network
• Differential mode (DM)
• Common mode (CM)
• L or N
• Artificial hand grounding
• Low-pass filter 35MHz
• High-pass filter 9kHz
• Built-in limiter
• Measurement range 9kHz - 110MHz
• Attn 10dB
• 22 x 10 x 24 cm

Connections
• BNC to Spectrum analyzer
• 90 ~ 250VAC 16A to DUT
• Artificial hand

The selectable low- and high-pass filters eliminate measurement errors due to clipping of the measurement receiver. This measurement instrument is targeted at electronic engineers that deal with devices that are connected to the Mains like inverters, machines and power supplies. The circuit used, conforms to the specifications of EN 55016-1-2, VDE 0876 and ANSI C63.4 for V-networks with a simulated impedance of (50μH / 250μH + 5 Ω ) || 50 Ω in the frequency range 9 kHz to 30 MHz. It is design to allow for peaks up to 30A without loss of linearity.
