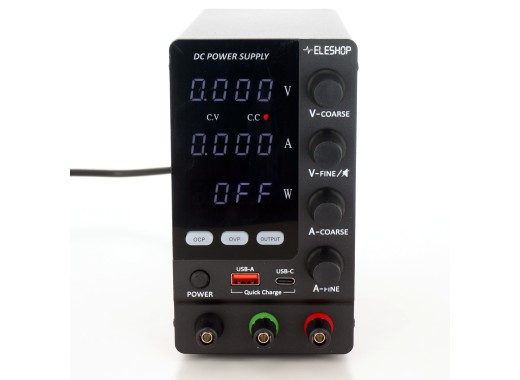

ELE-PSU3010S lab power supply
Details
The ELE-PSU3010S is a compact, switched-mode DC power supply with a 30V/10A range and a resolution of 10mV/1mA. It uses stepless control with both a coarse tuner and a fine tuner for the voltage and current. However, instead of potmeter controls as with the ELE-PSU3010W, this product uses encoder controls. Turn the knob to change and then push to select a value. Also unique is that this power supply comes with both USB-A and USB-C outputs, rated for the standard E1.1/2.0, APPLE, BC1.2, AFC,FCP (USB-A) and QC2.0/QC3.0, PD3.0 (USB-C) quick charge protocols. The power supply has a 4-digit display for accurately displaying the voltage and current.
Specifications
| Total power | 300 W |
| Outputs | 1 |
| Output switch | Yes |
| Voltage range | 0 - 30 V |
| Current range | 0 - 10 A |
| Resolution | 10 mV / 1 mA |
| Ripple | ≤ 30 mVrms / ≤ 20 mArms |
| Protection | OCP, OVP |
| Display | 4-digit LCD |
| Dimensions | 218 x 85 x 155 mm |
| Weight | 1.2 kg |
Accessories
The ELE-PSU3010S comes by default with:
- EU power cord
- 4mm to alligator clip test leads
Pros and cons
- Accurate encoder control knobs
- Quick charge USB-A and USB-C ports
- Has an output on/off button
- Not programmable
Downloads
| ELE-PSU3010S manual v1.2.2 |  (1.13 MB) | Download |
