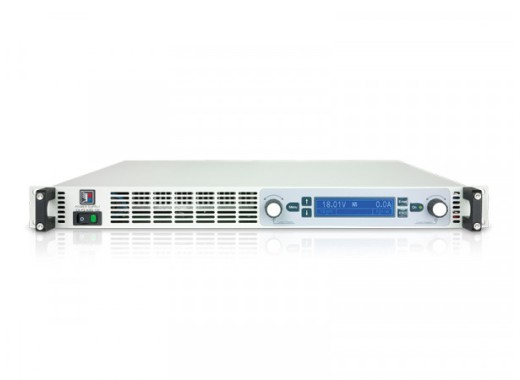

EA-PS 9750-12 3000W 1U
Details
The EA-PS 9750-12 1U lab power supply from Elektro-Automatik belongs to the EA-PS 9000 1U series and features a power output of 3000W. This rack-mountable power supply has an output voltage of 0-750V and an output current of 0-12A.
These power supplies offer flexible "auto-ranging". This allows them to offer a high current OR a high voltage within the power offered. There is a picture of this in the images above. The power supply indicates when it is operating in CC (constant current), CV (constant voltage) or CP (constant power) mode. In addition, the lab power supplies contain an LCD display with an accurate indication of the current and voltage in 4 digits.
Specifications
| Total power | 3000 W |
| Outputs | 1 |
| Output switch | Yes |
| Voltage range | 0 - 750 V |
| Current range | 0 - 12 A |
| Resolution | 0.1 V/1 mA/1 W |
| Ripple | 40 mVrms / 0.7 mArms |
| Protection | OPP, OCP, OVP, OTP |
| Interfaces | Share bus, Remote sensing, Analog, USB-B, Ethernet |
| Dimensions | 482 x 42 x 500 mm |
| Weight | 11 kg |
Accessories
The EA-PS 9750-12 1U lab power supply comes with the following accessories:
- Power cord
- Share bus plug
- USB cable
- Remote sensing plug
Downloads
| EA-PS 9000 1U datasheet |  (807.64 KB) | Download |
| EA-PS 9000 1U manual | (2 MB) | Download |
