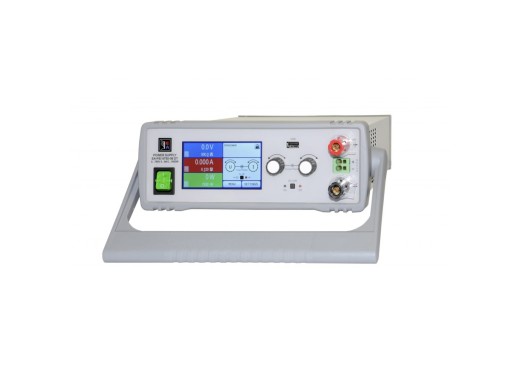

EA-PSI 9750-06 DT power supply
Details
The Elektro-Automatik EA-PSI 9750-06 DT is a desktop power supply capable of providing 750V, 6A, and 1500W with an efficiency of ≤93%. This power supply has a built-in function generator with 5 predefined waveforms, which can be customized using the standard parameters. Additionally, you can make a sequence of up to 99 functions, this can be done beforehand on a PC and loaded into the power supply or be directly done on the power supply. The PSI 9750-06 DT can be controlled by the included Software from Elektro Automatik, but it can also be done by SCPI commands. The power supply also comes with protection features, a 4.3" TFT touchscreen, remote sensing, and auto-ranging power stage.
Specifications
| Total power | 1500 W |
| Outputs | 1 |
| Output switch | Yes |
| Voltage range | 0 - 750 V |
| Current range | 0 - 6 A |
| Resistance range | 0 - 3825 Ω |
| Resolution | 0.1 V/1 mA/1 W/ 0.1Ω |
| Ripple | 16 mVrms / 10 mArms |
| Protection | OPP, OCP, OVP, OTP |
| Interfaces | USB A, USB B, LAN, Analog |
| Display | 4.3" TFT touchscreen |
| Dimensions | 308 x 195 x 451 mm |
| Weight | 8.15 kg |
Accessories
The PSI 9750-06 DT comes with:
- USB cable
- Power cord
Pros and cons
- Highly compact design
- Multi-language control panel
Downloads
| EA-PSI-9000DT Datasheet |  (1021.85 KB) | Download |
| EA-PSI-9000DT Manual EN | (2.56 MB) | Download |
