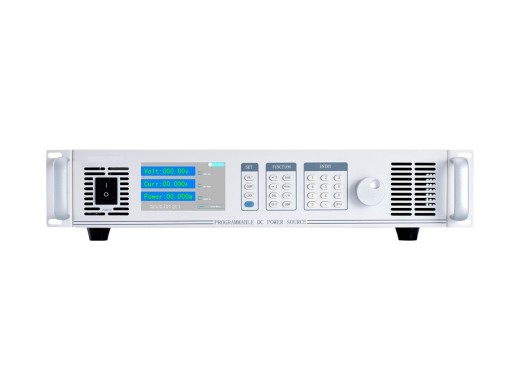

Owon OWP3060H power supply

1776.86 €1,776.86 Excl. VAT
Loading stock info
  •
Product number: ELE005752

Be the first to review this product

Lowest price guaranteed

Details

The Owon OWP3060H power supply has a maximum output of 3000W up to 8A and 600V. With the 1mV/0.1mA ouput resolution you get an accurate output. This power supply series supports multiple modes, for example fuction generator or step mode. Being able to put a graph on the display you can get a good overview of the output. These power supplies come with remote voltage compensation which will make sure that the voltage/amperage you set on the power supply is also what will be on the load. With a lot of programmability and the ability to mount it in a rack you get a good price-quality ratio

The rack-mount ability is 2U/3U and doesn't apply for the 1KW models

Models

The models differ in maximum voltage, current and output power.

ModelOWP1006HOWP1010HOWP1020HOWP1030H
Voltage 60 V 100 V 200 V 300 V
Current 30 A 15 A 8 A 5 A
Output power 1000 W 1000 W 1000 W 1000 W
Price 1070.25 €1,070.25 Excl. VAT 1070.25 €1,070.25 Excl. VAT 1070.25 €1,070.25 Excl. VAT 1070.25 €1,070.25 Excl. VAT
ModelOWP3004HOWP3006HOWP3008HOWP3010HOWP3020HOWP3040HOWP3060H
Voltage 45 V 60 V 80 V 100 V 200 V 400 V 600 V
Current 100 A 80 A 60 A 45 A 23 A 12 A 6 A
Output power 3000 W 3000 W 3000 W 3000 W 3000 W 3000 W 3000 W
Price 1776.86 €1,776.86 Excl. VAT 1776.86 €1,776.86 Excl. VAT 1776.86 €1,776.86 Excl. VAT 1776.86 €1,776.86 Excl. VAT 1776.86 €1,776.86 Excl. VAT 1776.86 €1,776.86 Excl. VAT 1776.86 €1,776.86 Excl. VAT
ModelOWP8010HOWP8020HOWP8040HOWP8060HOWP8100HOWP8150H
Voltage 100 V 200 V 400 V 600 V 1000 V 1500 V
Current 100 A 50 A 25 A 17 A 10 A 5 A
Output power 8000 W 8000 W 8000 W 8000 W 8000 W 7500 W
Price 3053.72 €3,053.72 Excl. VAT 3053.72 €3,053.72 Excl. VAT 3053.72 €3,053.72 Excl. VAT 3053.72 €3,053.72 Excl. VAT 3053.72 €3,053.72 Excl. VAT 3301.65 €3,301.65 Excl. VAT

Specifications

Total power3000 W
ModeCC, CV, CP
Outputs1
Output switchYes
Voltage range0 - 600 V
Current range0 - 8 A
Resolution10mV/1mA
ProtectionOLP, OCP, OVP, OTP
InterfacesCAN, RS485
Display 4.3" TFT
Dimensions425 x 88 x 450 mm
Weight14 kg

Accessories

  • Power cord

Pros and cons

  • Remote sense
  • Accurate
  • OCP, OVP, OTP, OLP protection
  • High wattage

Downloads

OWP_H Technical Specifications
 pdf (409.33 KB) Download
OWP_H User Manual
 pdf (1.81 MB) Download
