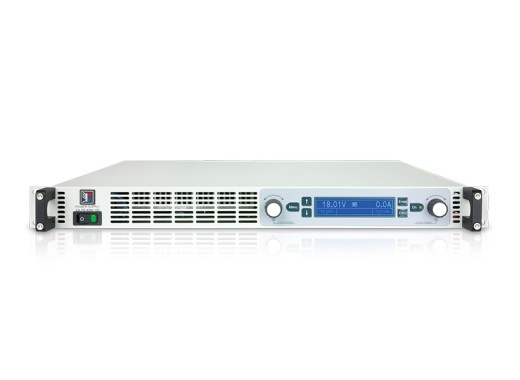

EA-PS 9080-100 1U power supply
Details
The Elektro-Automatik PS 9080-100 power supply is an 80V,100A power supply that is able to deliver up to 3kW of power. This 1U supply can only be placed inside a rack of 19". It comes with multiple interfaces like LAN, Analog, and USB which allows it to be controlled by the PC with the included software or through SCPI commands. The protective features and ease of controlling the power supply make it easy to do any test.
Specifications
| Total power | 3000 W |
| Outputs | 1 |
| Output switch | Yes |
| Voltage range | 0 - 80 V |
| Current range | 0 - 100 A |
| Resolution | 10 mV/10 mA/1 W |
| Ripple | 4.2 mVrms / 6 mArms |
| Protection | OPP, OCP, OVP, OTP |
| Interfaces | USB A, Analog, Share-bus, LAN |
| Display | Dot matrix |
| Dimensions | 483 x 44 x 565 mm |
| Weight | 11 kg |
Accessories
The PS 9080-100 comes with:
- USB cable
- Share bus plug
- Remote sensing plug
- Power cord
Pros and cons
- Up to 3KW
- Only rack-mountable
Downloads
| EA-PS 9000 1U datasheet |  (807.64 KB) | Download |
| EA-PS 9000 1U manual | (2 MB) | Download |
