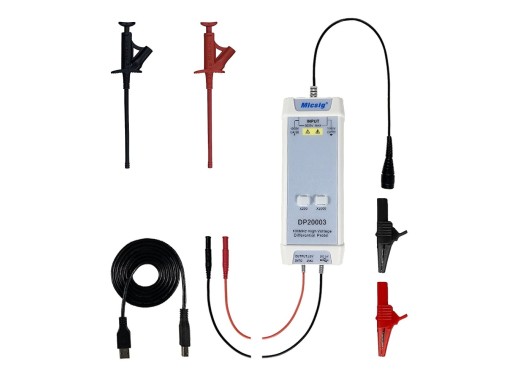

Micsig DP20003 differential probe
Details
This probe has a remarkable price-performance ratio, unlike any other one that we sell. A bandwidth of 100 MHz and a measurement range up to 5600 V. Variable attenuation finishes the package.
With the specs that this probe offers it allows for a broad usage. This combined with a low price makes the probe unparalleled in the competition.
The probe is supplied through an USB connection, which makes it more portable, as almost all scopes offer an external USB port. This makes a separate power brick unnecessary. A broad collection of clamps and clips are supplied for measurements.
Model overview
| Model | DP10007 | DP10013 | DP20003 | DP750-100 |
|---|---|---|---|---|
| Max voltage | ±700 V at 100x mode | ±1300 V at 500x mode | ±5600 V at 2000x mode | ±750 V at 500x mode |
| Attenuation | 10x, 100x | 50x, 500x | 200x, 2000x | 50x, 500x |
| Max input voltage (compared to ground) | 600 V, CAT II 1000 V, CAT I | 1000 V, CAT II | 1000 V, CAT III | 1000 V, CAT II |
| Total range (DC+ACpp) | 70 V (10x) 700 V (100x) | 130 V (50x) 1300 V (500x) | 560 V (200x) 5600 V (2000x) | 75 V (50x) 750 V (500x) |
| Output voltage | ≤ 7 V | ≤ 3 V | ≤ 3 V | ≤ 1.5 V |
| CMRR | ≤ -80 dB (50 Hz / DC) ≤ -60 dB (20 KHz) ≤ -45 dB (1 MHz) | ≤ -80 dB (DC) ≤ -60 dB (100 KHz) ≤ -50 dB (1 MHz) | ≤ -80 dB (DC) ≤ -60 dB (100 KHz) ≤ -50 dB (1 MHz) | ≤ -80 dB (DC) ≤ -60 dB (100 KHz) ≤ -50 dB (1 MHz) |
| Power supply | USB (5V), 1.25 W | USB (5V), 0.85 W | USB (5V), 0.85 W | USB (5V), 1 W |
| Cable lengths | Input: 45 cm Output: 90 cm | Input: 45 cm Output: 90 cm | Input: 45 cm Output: 90 cm | Input: 15 cm Output: 100 cm |
| Price |
Specifications
| Bandwidth | 100 MHz |
| Channels | 1 |
| Rise time | 3.5 ns |
| Dimensions | 145 x 60 x 27 mm |
Accessories
The following is included with the product:
- 1 pair of alligator clips
- 1 pair of test hooks
- USB cable
- Case
Downloads
| Micsig DP series user manual |
 (1.26 MB) |
Download |
