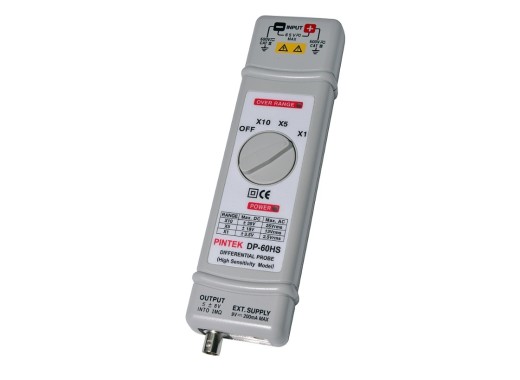

Pintek DP-60HS differential probe
Details
The Pintek DP-60HS is a high sensitivity differential probe able to convert high differential input voltages (max. 70V) into a low voltage with reference to the earth, for a safe display output on oscilloscopes, etc.
The differential probe has a maximum voltage of 35V to ground and a switchable attenuation of x1, x5 and x10, a maximum bandwidth of 60MHz and has an accuracy of 2%. This product has multiple rejection rates in Common Mode; 60Hz at > 80dB, 100Hz at >60dB and 1MHz at >50dB.
This product becomes even more accurate in combination with a digital multimeter than with an oscilloscope, making it especially suitable for high sensitivity (HS) use.
Specifications
| Max. input voltage | 70 Vp-p |
| Attentuation | x1, x5, x10 |
| Max. bandwidth | 60 MHz | Max. voltage to ground | 600 Vrms |
| Max. measurement AC | 35 Vrms | Max. measurement DC | 25 V |
| Peak voltage | 70 Vpp |
| Accuracy | ± 2% |
| Input impedance | 1 MΩ |
| Output impedance | 50 Ω |
| Dimensions | 195 x 55 x 30 mm |
| Weight | 0.25 kg |
Accessories
The Pintek DP-60HS comes with the following accessories:- Insulated BNC/BNC Lead (BP-250)
- AC Adapter
- 2 x High Voltage IC Clip (BP256N)
- 2 x Banana to Banana High Voltage Plug (BP-356N)
- 2 x Alligator Clip (BP-276N)
Pros and cons
- Converts high differential voltages to low voltages to protect oscilloscopes.
- Precise and accurate measurement.
Downloads
| Pintek DP-60HS manual |  (1.19 MB) | Download |
| Pintek DP-60HS datasheet | (845.52 KB) | Download |
