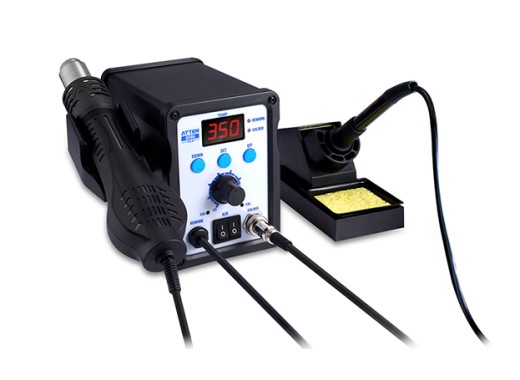

The Atten AT8586 is a practical addition to your workplace. The rework station can be used for repair and soldering applications. The soldering iron and the hot air iron can be used simultaneously or separately. On the LED screen the temperature of the used tool is displayed. The station also has an auto-sleep function and a good cooling system, which extends the life of the station.
The hot air bolt can supply a power of 700 watts and the temperature is adjustable between 100℃ and 500℃. The fan blows approximately 120 litres of air per minute and 3 nozzles are included, allowing fast and precise operation.
Specifications
| | Power | Vermogen |
| Solder station | 50W | 150℃ - 480℃ |
| Hot air station | 700W | 100℃ - 500℃ |
|
| Point to ground (impedance/voltage) | 2Ω/2mV |
| Air flow rate | 120L/min |
| Compressor type | Fan |
| Sound | 52dB |
| Display | LED |
| Total | 2900 grams |
Buy your AT8586 tips here
Accessories
This Atten AT8586 rework station consists of:
- Soldering station
- Hot air station
3 Nozzles
- Manual
(2.21 MB)
