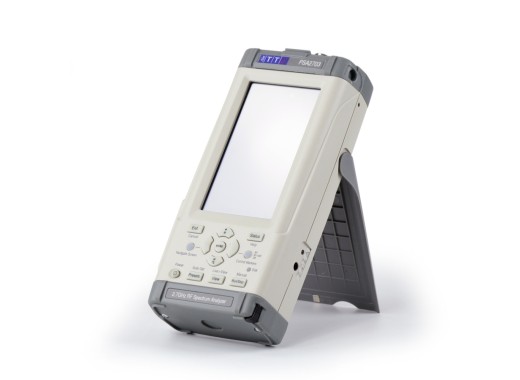

Aim-TTI PSA3605 spectrum analyser

The Aim-TTI PSA3605 is a handheld spectrum analyzer which is compact yet powerful. It features a bandwidth of 10MHz up to 3.6GHz, a frequency counter with a resolution of 10Hz and a frequency resolution of 100Hz for the analyzer resulting in accurate measurements. This spectrum analyser features a small DANL which is excellent for small signal measurements. Zero span mode is also included in addition to AM and FM demodulation. Trace modes are available in addition to reference traces in different contrasting colours for easier comparison as well as smart marker movement with selectable peak tracking. There is also an auto find mode which automatically sets sweep parameters to the peak signal that is detected. The display consists of a 4.3" touch screen and is easily interacted with by using the included stylus. The battery allows for 6 hours of use and is recharged in 3 hours or less. Usb host/device is available for connection to a pc or for external storage in addition to the 1.8GB in internal storage already present.

This spectrum analyser is also available with extra options and accessories, see the PSA2703USC. This product contains all possible options for its model, and also includes a travel case.

Model overview

Specifications

Accessories

The PSA3605 includes:

• Power cord
• USB cable
• Stylus
• BNC to trigger input converter

Downloads

Aim-TTI PSA series 5 datasheet	(2.39 MB)	Download
Aim-TTI PSA series 5 user manual	(3.21 MB)	Download
