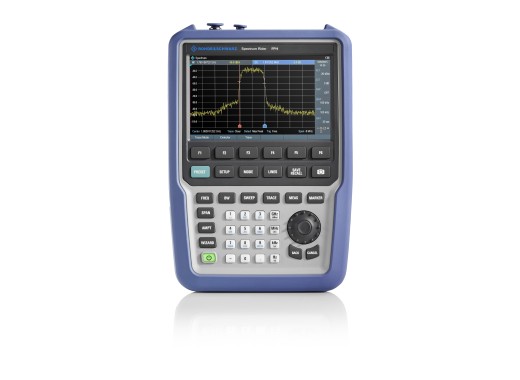

Rohde & Schwarz FPH handheld spectrum analyser
Details
The Rohde & Schwarz FPH is a robust handheld spectrum analyser. The frequency range of this spectrum analyser is standard 2 GHz and can be extended up to 4 GHz. The FPH handheld spectrum analyser is not too big, weighs 2.5 kg and the batteries last up to 8 hours, making it easy to transport. The typical noise experienced by this analyser is -145 dBm/Hz. The Rohde & Schwarz FSC series of spectrum analysers also offer the option of adding a pre-amplifier with a gain of 20 dB, so that the noise is only -163 dBm/Hz. Furthermore, the FPC1000 can be connected to a PC via USB and LAN connections. Of course it is also possible to store measurement data using a USB stick.
There are 2 options to increase the frequency range, namely the option from 2 to 3 GHz and the option from 3 to 4 GHz. You can check this option at the top right of the product. If you need 4 GHz frequency range, you also need to buy the 2 to 3 GHz option! Additional option for this spectrum analyser is below and these options can also be ticked at the top right of the product.
Specifications
| Display | 7" WVGA, 800 × 480 pixels |
| Frequency | 5 KHz - 2 GHz (option up to 4 GHz) |
| Resolution | 1 Hz |
| Noise level | Up to -145 dBm/Hz, with pre-amplifier (Option B22) down to -165 dBm/Hz |
| Third-order intercept (IP3) | +7 dBm |
| Maximum input voltage | 50V DC |
| Amplitude display |
Log: 1 dB - 150 dB, 10 divisions Linear: 0 - 100 %, 10 divisions |
| Connections | USB 2.0 type A, mini B plug 2.0, Lan (10/100BASE-T, RJ-45) |
| Battery life | Up to 8 hours |
| Weight | 2.5 kg |
| Dimensions | 202 x 294 x 76 mm |
Software, firmware and drivers
The software, firmware and drivers of this spectrum analyser can be found at the manufacturer's website on the right.
Accessories
The Rohde & Schwarz FPH handheld spectrum analyser is supplied including:
- Power cord
- USB cable for PC connection
- Lithium-ion battery pack
- CD with Rohde & Schwarz Instrument View software, documentation and quick start guide
- Side strap (holding strap)
Options
There are some optional software functions available for this spectrum analyser. Below is a brief overview. The options can be ticked at the product, or added at a later time.
| FPH-B22 | This option provides a preamplifier for the spectrum analyser. |
| FPH-K7 | This option makes it possible to perform analog modulation (AM and FM) analysis. |
| FPH-K9 | This option allows you to connect a power sensor to the FPH spectrum analyser. |
| FPH-K19 | This option allows the software to measure the power of the channels of FPH spectrum analyser moderately. |
| FPH-K29 | This option makes it possible to use the power sensor to perform pulse measurements. For this option the FPH-K9 is required. |
| HA-Z220 | A soft carrying case for your FPH handheld spectrum analyser. |
Downloads
| Rodhe & Schwarz FPH series datasheet |  (2.07 MB) | Download |
| FPH brochure | (11.09 MB) | Download |
