Details

This is a second chance product, where we offer the XLB45-STL7 for a reduced price. The product box has been opened, but is in perfect condition with no traces of use.

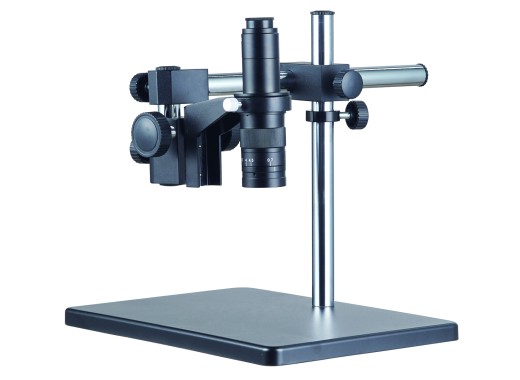

The XLB45 video microscope lens is designed to accommodate a camera module and enables high-quality video/photo capture. The magnification of the lens makes this set suitable for the inspection of electronics. The set includes a metal base, a mount and a microscope lens and is meant for people who want to record with the use of rigid stand and don't need a stereo microscope. Common applications of the microscope lens are in the electronic industry and agricultural research for micro-object observation, inspection and measurement. Furthermore, the 63-180lp/mm resolution meets the requirements of conventional imaging machine vision.

There is no camera included in this set; we recommend our latest HDMI camera for microscope 1080p 1/2" Sony sensor , but this set works well with all the microscope cameras on our website. Also, it is not necessary to use a CCD adapter with this microscope lens set.

Specifications XLB45 microscope lens

Magnification	0.7x - 4.5x
Focus distance*
Minimum zoom	22 cm
Maximum zoom	9 cm
Dimensions	176 x 58 mm LxD
Weight	502 g

*Adding a LED ring to the bottom decreases the working distance by approximately 1 cm

Specifications STL7 stand

Maximum vertical distance	100 mm
Maximum horizontal distance	315 mm
Diameter clamp	25 mm
Base dimensions	380 x 260 x 20 mm LxWxH

Optional accesories

Camera module	This very light-sensitive camera module can be attached to this microscope set. Don't forget to purchase a microscope adapter with this camera as you need it to attach the camera to the microscope.	Sony sensor camera 326.45 €326.45 Excl. VAT Info
LED ring	Without illumination, it can get very dark under a microscope. So sometimes an LED ring may improve the visiblity of whatever you are trying to view.	Dimmable LED ring 64.99 €64.99 Excl. VAT Info
