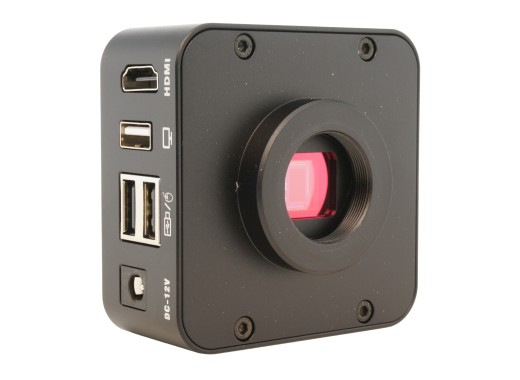

HDMI camera for microscope 1080p 1/2" Sony sensor
Details
This HDMI camera can be connected to a microscope to store and live view images. The camera is equipped with a 1/2" Sony sensor which is very light-sensitive. In addition, this HDMI camera enables both HDMI and USB video output at 1080P and a frame rate of 60 FPS. Captured photos can be stored on a USB flash drive or a computer. Moreover, the camera has 2 USB ports to connect to, for example, a mouse, USB stick or external card reader. Keep in mind that this camera needs to be combined with an adapter to connect it to a microscope.
As an adapter, we recommend the C-mount 0.5x. Examples of microscopes with which this camera can be combined include the SM-3TP and the SM-4TP. With the included 5mm distance ring, the image from this camera can be focused simultaneously with the image through the eyepieces.
Microscoop C-mount adapter
To mount a camera on the microscope, it must be connected to the correct adapter.
Specifications
| Resolution | 1920 x 1080 |
| Storage | USB flash drive / computer |
| Frame Rate | 60 FPS |
| Connectivity | HDMI, UVC, and USB |
| Frame type | Standard C-mount |
| Sensor | IMX385 1/2" CMOS |
| Power supply | DC 12 V |
| Weight | 0.2 kg |
| Dimensions | 72 x 72 x 33 mm |
Accessories
This HDMI camera comes by default with:
- USB cable
- Wireless mouse
- Power adapter and cable
- HDMI cable
- 5mm spacer ring
Pros and cons
- Easy to operate
- High-quality sensor
Downloads
| HDMI camera for microscope manual |  (735.81 KB) | Download |
| HDMI camera assembly manual | (1.1 MB) | Download |
| S-EYE software |  (31.13 MB) | Download |
