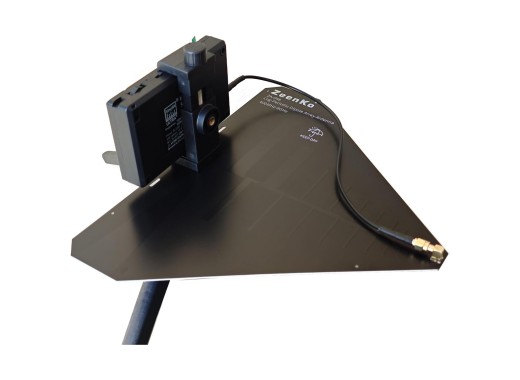

ZA-048 antenna
Details
The ZA-048 is a budget-friendly entry-level log-per antenna that is directional. The antenna is specified from 400-1800MHz with an average SWR of 2, rising to a typical maximum of 4. For higher performance, consider the ANT-DA13. The antenna is built in a handheld format and comes with a clamp on which you can possibly mount your tinySA ultra.
Specifications
| Type of antenna | Printed LDPA (Log Periodic Dipole Array) |
| Frequency range | 400 MHz - 8 GHz |
| Direction Finding Range | 1 GHz - 8.5 GHz |
| Nominal impedance | 50 Ω |
| VSWR / Return Loss |
400 MHz - 1 GHz: VSWR ≈ 4 (RL ≤ 4.5 dB) > 1 GHz: VSWR ≈ 2 (RL ≤ 10 dB) |
| Compatibility | Universal, optimised for tinySA ULTRA |
| Dimensions | 270 x 230 mm |
| Weight | 0.6 kg |
Accessoires
The ZA-048 is delivered with
- 1x antenna handle
- 1x mounting clamp for tinySA
Pros and cons
- Tripod and tinySA mount included
Downloads
| ZA-048 additional information |  (223.96 KB) | Download |
