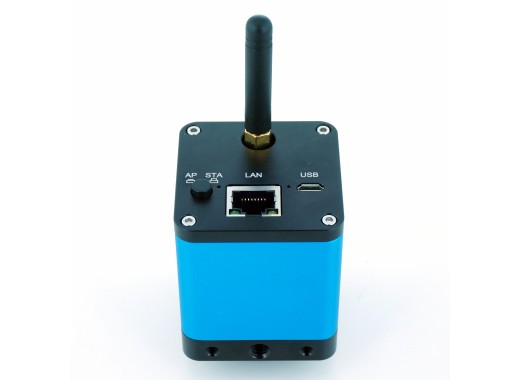

WiFi + LAN camera for microscope 2K 1/1.8" Sony sensor
Details
This 2K WiFi camera can be connected to a microscope in order to stream/record observations via a wireless or wired connection. The microscope camera is equipped with a 4MP 1/1.8" Sony sensor which is very light-sensitive and therefore functions well in low light situations. This camera can output video via micro USB, LAN and WiFi at 2688x1512 pixels and with a frame rate of 30fps. Video can easily be recorded and stored on the connected device using the software. Keep in mind that this camera needs to be combined with an adapter to connect it to a microscope.
As an adapter, we recommend the C-mount 0.5x. Examples of microscopes with which this camera can be combined include the SM-3TP and the SM-4TP.
Microscope C-mount adapter
To mount a camera on the microscope, it must be connected to the correct adapter.
Specifications
| Resolution | 2688 x 1512 |
| Storage | External(via connected device) |
| Frame Rate | 30 fps |
| Connectivity | Micro USB, LAN, WiFi |
| Frame type | Standard C-mount |
| Sensor | Sony IMX347 1/1.8" CMOS |
| Weight | 0.19 kg |
| Dimensions | 50 x 50 x 112 mm |
The software can be downloaded here: Toupview (59MB)
Accessories
This WiFi camera comes by default with:
- 5V 1A USB-A power supply
- 1.5m USB-A to micro USB cable
- 23.2mm to 30.0mm adapter ring
- 23.2mm to 30.5mm adapter ring
Pros and cons
- Wireless connection
- High-quality Sony sensor
- Only 30fps
Downloads
| WiFi microscope camera 2K user manual |  (1.05 MB) | Download |
| Toupview software manual | (11.35 MB) | Download |
| ToupView |  (59.25 MB) | Download |
