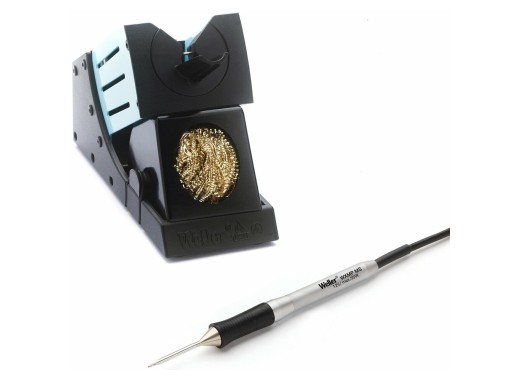

Weller WXMP-MS soldering iron set

The Weller WXMP MS set includes a soldering iron, soldering tip and a safety-rest stand. This set is used with the Weller control units (not included in the set, options listed below) and is ideal for small soldering applications, such as soldering under a microscope. The set consists of the Weller WXMP MS micro soldering iron and the WDH 51 soldering stand. The soldering iron has an active tip and is compatible with the RTM MS series soldering tips, which can perform very delicate soldering jobs.

The stand provides a safe way to store the iron while it is not being used, and it also contains a copper brass wool tip cleaner for easy cleaning. The iron heats up to 100 °C up to 450 °C within 3 seconds, and supplies up to 40W of power at 12V.

This soldering iron can be controlled using the following Weller controllers:

• WX 1
• WX 2
• WXA 2
• WXD 2
• WXR 3

Specifications

Accessories

The Weller WXMP MS set consists of:

• 1x Weller WXMP MS micro soldering iron
• 1x Weller WDH 51 stand with copper brass wool tip cleaner
• 1x Weller RTM 013 S MS soldering tip

Downloads

Weller WXMP MS set datasheet

(343 KB)

Download
