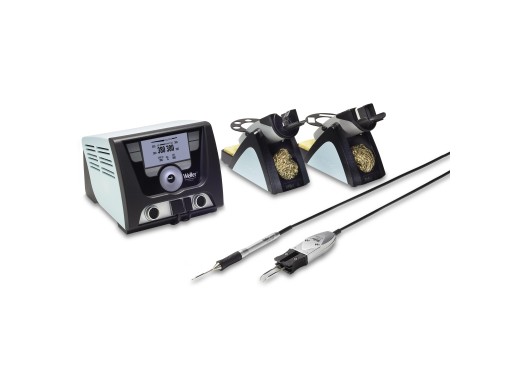

Weller WX 2021 soldering station
Details
The Weller WX 2021 soldering station is a multifunctional station with a power of 255W and two channels. The Weller WX 2021 is equipped with desoldering tweezers and a soldering iron that uses active tips especially designed to solder SMD components. The temperature of the soldering station ranges from 100°C - 550°C and the tips are able to achieve a temperature of 350°C within 5 seconds. One of the advantages of this product is that both channels are compatible with all the active and passive Weller WX series soldering irons and desoldering irons, and tweezers; feel free to contact us if you want more information. Other features of the WX 2021 are its touch screen display, data logging capabilities, RS232 programmability and standby-mode that reduces energy consumption while the station is not in use.
Specifications
| Power | 255 W |
| Temperature range | 100 °C - 550 °C |
| Heating time | ~ 5 sec (from 50 °C to 350 °C) |
| Tip system | Active |
| Interface | 1x USB, 2x RS232 |
| ESD safe | Yes |
| Automatic standby | Yes |
| Dimensions | 174 x 154 x 135 mm |
| Weight | 3.450 kg |
Buy your RTM soldering tips here
Buy your RTW tweezer tips here
Accessories
The WX 2021 comes by default with:
- WXMP soldering iron holder
- WXMT desoldering iron holder
- WXMP micro soldering iron
- WXMT micro desoldering tweezers
- RTM 013 S soldering tip chisel (1.3 x 0.4 mm)
- RTW 2 45° soldering tip tweezer (0.7 x 0.4 mm, 45°)
- Power cable
Pros and cons
- Has a touch screen display
- Has two channels
- Uses active tips
- Compatible with all the WX series soldering irons and desoldering irons, and tweezers
- Possible to log data with a usb-interface
- Possible to combine with the Weller Zero Smog fume extractor
- High cost
Downloads
| Weller WX series user manual |  (5.94 MB) | Download |
| Weller WX1 interface manual | (2.79 MB) | Download |
| Weller WX2021 Datasheet | (1.62 MB) | Download |
