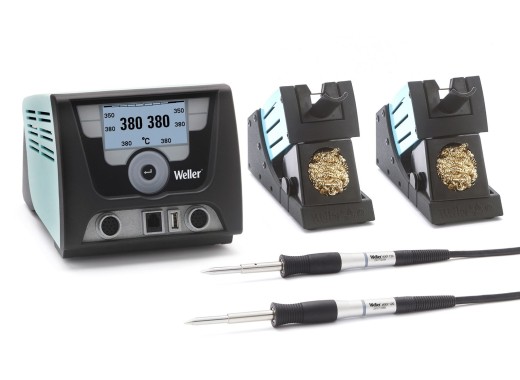

Weller WX 2020 soldering station
Details
The Weller WX 2020 soldering station is a multifunctional station with a power of 255W and two channels. The Weller WX 2020 is equipped with a soldering iron that uses passive tips. The temperature of the soldering station ranges between 100°C - 550°C and the tips can reach a temperature of 350°C within 7 seconds. One of the advantages of this product is that both channels are compatible with all the active and passive Weller WX series soldering irons and desoldering irons, and tweezers; feel free to contact us if you want more information. Other features of the WX 2020 Pico MS are its touchscreen display, data logging capabilities, RS232 programmability and standby-mode that reduces energy consumption while the station is not in use.
Specifications
| Power | 255W |
| Temperature range | 100 °C - 550 °C |
| Heating time | ~ 7 sec (from 50 °C to 350 °C) |
| Tip system | Passive |
| ESD safe | Yes |
| Automatic standby | Yes |
| Dimensions | 174 x 154 x 135 mm |
| Weight | 3.450 kg |
The WXP 120 soldering iron is compatible with Weller XT series tips; it is possible to purchase these via the blue button below.
Buy your Weller XT series tips here
Accessories
The WX 2020 comes by default with:
- WDH 10 soldering iron holder
- WXP 120 soldering iron
- XT B soldering tip chisel (2,4 mm)
- Power cable
Pros and cons
- Has a touch screen display
- Has two channels
- Compatible with all the WX series soldering irons and tweezers
- Possible to log data with a usb-interface
- Possible to combine with the Weller Zero Smog fume extractor
- High price
- Uses passive tips
Downloads
| Weller WX series user manual |  (5.94 MB) | Download |
| Weller WX1 interface manual | (2.79 MB) | Download |
