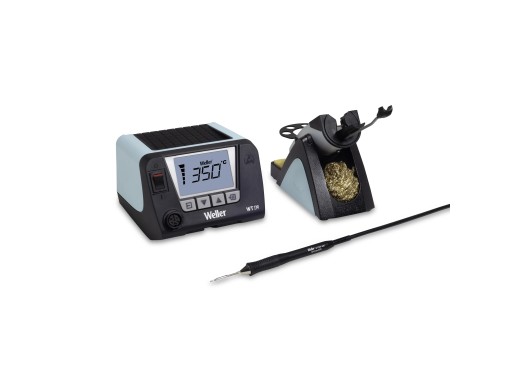

Weller WT 1010M soldering station kit
Details
The Weller WT 1010M soldering station kit delivers a power output of 95W. The WT 1010M provides digital adjustment options for easy and accurate setup. The soldering station has a temperature range from 50℃ up to 550℃ (depending on the tool connected to the control unit), which can be set with 9℃ accuracy and 2℃ stability.
The soldering iron is ESD-safe and very safe in use thanks to the low voltage that powers the iron. This soldering station is delivered with a separate safety rest with a built-in brasswool tip cleaner and automatic stand-by function, to safely store and clean the iron between soldering tasks.
Due to the output power of 95W, the soldering tip reaches the set temperature quickly and is therefore ideal for soldering without delays. This power is more than enough to heat medium-sized surfaces easily, and the kit is designed to fulfil all micro and regular soldering applications.
Different soldering tips for this station can be found here.
Specifications:
| Power | 95 Watt |
| Temperature range | 50 - 550 °C (dependent on tool) |
| Tip system | Active |
| Heating time | 5 seconds |
| Temperature precision | ± 9 °C |
| Temperature stability | ± 2 °C |
| Automatic standby | Yes |
| ESD safe | Yes |
| Display | Graphical backlit LCD |
| Dimensions | 150 x 130 x 101 mm |
| Weight | 1.9 kg |
Accessories
The Weller WT 1010M comes by default with:
- WT1M control unit
- Soldering iron (WTMP MS)
- RTM 013 S MS micro soldering tip
- Soldering iron safety rest (WSR 205)
- Power cord
Downloads
| Weller WT 1010M datasheet |  (103.83 KB) | Download |
| Weller WT 1010M user manual | (8.42 MB) | Download |
