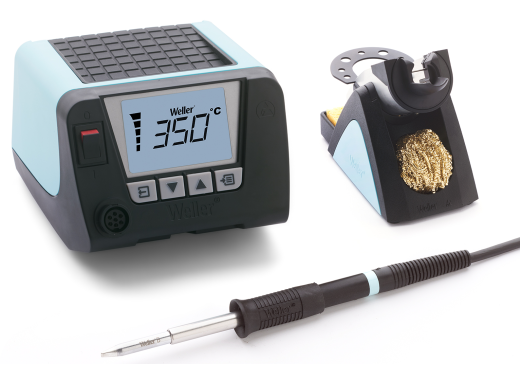

Weller WT 1010H soldering station
Details
The Weller WT 1010H soldering station is a versatile, beginner friendly station that has a power of 150W and uses passive soldering tips to transfer heat. The temperature of the soldering station ranges from 50°C - 550°C and the tips are able to achieve a temperature of 350°C within 12 seconds. The WT 1010H has a user-friendly interface and is compatible with all the WD, WT and WSD soldering irons; feel free to contact us if you want more information.
Specifications
| Power | 150 W |
| Temperature range | 50 °C - 550 °C |
| Heating time | ~ 12 sec (from 50 °C to 350 °C) |
| Tip system | Passive |
| ESD safe | Yes |
| Automatic standby | Yes |
| Dimensions | 150 x 130 x 101 mm |
| Weight | 1.9 kg |
Accessories
The WT 1010H comes by default with:
- WSR 201 soldering iron holder
- WP 120 soldering iron
- XT B soldering tip chisel (2.4 mm)
- Power cord
The WP 120 soldering iron is compatible with Weller XT series tips; it is possible to purchase these via the blue button below.
Pros and cons
- User-friendly interface
- Possible to combine with the Weller Zero Smog fume extractor
- Can be stacked on top of the Weller WTHA 1 hot air station
- Passive tip
- High price
Downloads
| Weller WT general |  (1.6 MB) | Download |
| Weller WT manual | (5.54 MB) | Download |
