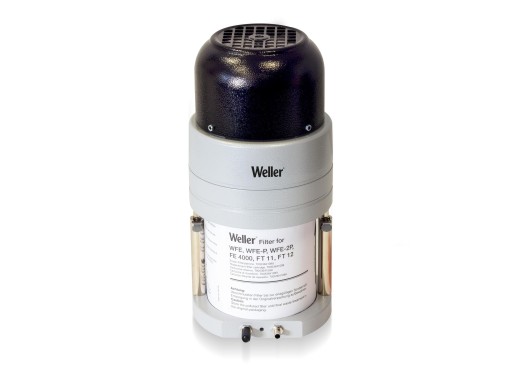

Weller WFE P fume extractor
Details
The Weller WFE P fume extractor is designed to be used with soldering iron extraction units such as the F3435, F3449, and F3450. The extraction unit has two inlets letting you use up to 2 tubes simultaneously. Furthermore, the fume extractor has a 2-stage filtering system with an F7 pre-filtering disk to remove fine particles and the main broadband gas filter to further remove finer particles and gases. Unlike the FT 12, the WFE P uses an electric motor to create suction at 2 power levels, and is small enough to be used on the tabletop.
Specifications
| Inlets | 2 |
| Power | 70 W |
| Airflow | 50 m3/h |
| Speed control | Buttons |
| Noise level | <70 dBa |
| Filters | Fine dust filter F7 Compact filter (H13 particle filter + 50% activated carbon, 50% KMnO4 gas filter) |
| ESD safe | Yes |
| Dimensions | 140 x 140 x 295 mm |
| Weight | 4.0 kg |
Accessories
The WFE P comes with:
- Fine dust filter F7
- Compact filter (particle filter H13 + broadband gas filter)
Downloads
| Weller WFEP user manual |  (8.44 MB) | Download |
| Weller WFEP datasheet | (1.56 MB) | Download |
