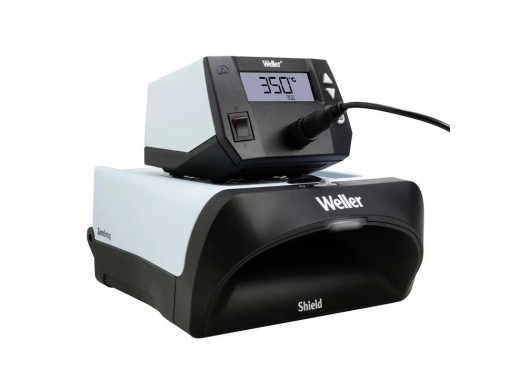

Weller WE1010 Zero Smog Shield kit
Details
The Weller WE1010 Zero Smog Shield kit is a cost-effective bundle that includes the Weller WE1010 soldering station and the Weller Zero Smog Shield fume extractor. The Weller WE1010 is a budget soldering station that offers all you need to solder. For more information about the Weller WE1010 see this page. The Zero Smog Shield is a compact fume extractor that can be placed beneath any soldering station. For more information on the characteristics of the Zero Smog Shield fume extractor (10W), please check the datasheet.
Specifications
WE1010
| Power | 70 W |
| Temperature range | 100 - 450 ℃ |
| Temperature precision | ± 5 ℃ |
| Temperature stability | ± 6 ℃ |
| Heating time | ± 28 s |
| ESD safe | ✔ |
| Dimensions | 150 x 120 x 98 mm |
| Weight | 1.4 kg |
Zero Smog Shield
| Power | 10 W |
| Airflow | 26 m3/h |
| Speed control | Buttons |
| Noise level | 50 dB |
| Filters | Activated carbon + E10 |
| Filter efficiency | 85% of particles >0.3 μm |
| ESD safe | Yes |
| Dimensions | 269.5 x 212 x 110 mm |
