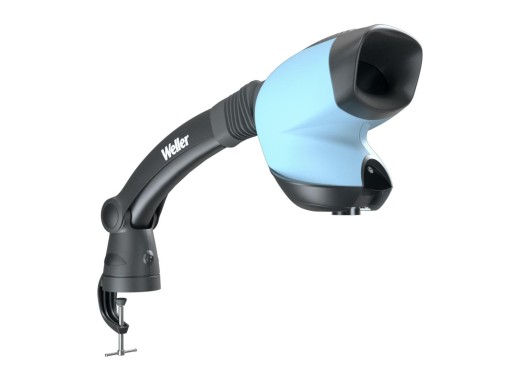

Weller PRISMA ESD 3D microscope
Details
The Weller PRISMA is a premium ESD-safe 3D microscope for nano soldering, rework and electronics inspection. This microscope uses eyepiece-less optics, so the image is viewed from a distance in true 3D rather than through eyepieces. Separate optical paths give each eye its own slightly offset view, which is what builds the stereo depth: joint shape, component height and lead placement are seen in relief instead of as a flat image, so probe and iron land accurately first time. Working at a distance keeps both eyes relaxed, suits users who wear glasses, and leaves room to move the board and tools freely under the lens. A 20 LED array at 9400lux and 7000K lights the work area with a natural white light.
The supplied standard 4x lens gives a 96mm working distance and a 27.5mm field of view. Lenses are interchangeable, and lens protection caps, a dust cover, desiccants and spare LED strips are available separately.
Specifications
| Microscope type | Stereo 3D, eyepiece-less |
| Magnification | 4x |
| Working distance | 96 mm |
| Field of view | 27.5 mm |
| Lighting type | 20 LEDs |
| Lighting intensity | 9400 lux |
| Lighting durability | Up to 10000 hours |
| ESD-safe | Yes |
| Manufacturer part number | T0051406599 |
| Dimensions | 605 x 454 x 320 mm |
| Weight | 10.82 kg |
Accessories
- Standard 4x lens
- Power supply
Pros and cons
- True 3D stereo depth
- Eyepiece-less viewing, also with glasses on
Downloads
| Weller PRISMA datasheet |  (153.85 KB) | Download |
| Weller PRISMA user manual | (9.95 MB) | Download |
