UNI-T UTS1032T spectrum analyser
Details
The UNI-T UTS1032T is a spectrum analyser in the UTS1000T series with a bandwidth of max. 3,2 GHz and a tracking generator. Unique to this product is the support for tracking source output functions, such as changing the amplitude, deviation, normalization and reference level value of the signal.
The very low displayed average noise level (DANL) combined with the high frequency resolution, featuring 10,001 sweep points, allows for an excellent sensitivity to weak incoming test signals. The product can display the scan data after using a calculation method according to one of the four trace types. Either clear/write, averaging, min. hold or max. hold can be selected as trace. To these traces also one of the five optional detection modes can be applied. Either sampling, peak, negative peak, normal detection or average can be selected as detection mode.
The 10.1" display with HD graphics supports multiple gesture operations such as dragging, expanding, zooming and selecting. The output of the multi-touch screen can also be connected to other display devices through the HDMI connection. The detachable dust filter, when cleaned regularly, ensures reliability of the device over a long period of time.

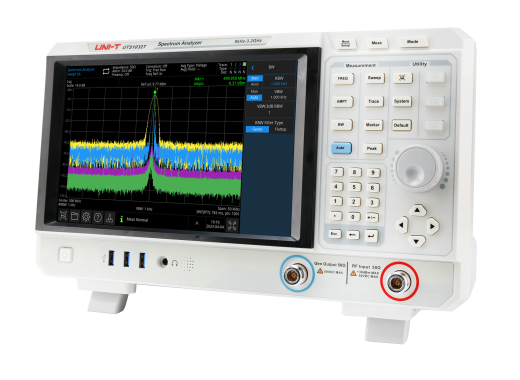

Take note, the pictured product is the UTS1015B, but is visually comparable to all products in the UTS1000T series.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Models
The models within the UTS1000T series differ from each other in bandwidth and frequency range of the tracking generator (TG).| Model | UTS1015T | UTS1032T |
|---|---|---|
| Bandwidth | 9 kHz - 1.5 GHz | 9 kHz - 3.2 GHz |
| Tracking generator | 100 kHz - 1.5 GHz | 10 MHz - 3.2 GHz |
| Price |
Specifications
| RBW | 1 Hz - 1 MHz |
| DANL | -161 dBm/Hz |
| Amplitude accuracy | < 0.7 dB |
| Phase noise | < -98 dB/Hz |
| Tracking generator | Yes |
| Interfaces | HDMI 1.4, USB-A host, USB-B device, LAN, SCPI protocol supported |
| Display | 10.1" LCD touchscreen (1280 x 800) |
| Dimensions | 378 x 218 x 120 mm |
| Weight | 4.55 kg |
Options
| Analysis option (software) | UTS1000-EMI | |
| Analog demodulation analysis option (software) | UTS1000-AMA | |
| Advanced measurement kit option (software) | UTS1000-AMK | |
| Tekbox EMCview (software) | EMCview | |
| Tekbox EMCview Pro (software) | EMCview Pro |
Accessories
The spectrum analysers of the UTS1000T series include:- Power cord
- USB cable (UT-D04)
Pros and cons
- Low DANL
- High signal sensitivity
- Vector signal analysis not integrated
Downloads
| UNI-T UTS1000B&T series datasheet |  (1.11 MB) | Download |
| UNI-T UTS1000B&T series manual | (3.45 MB) | Download |
