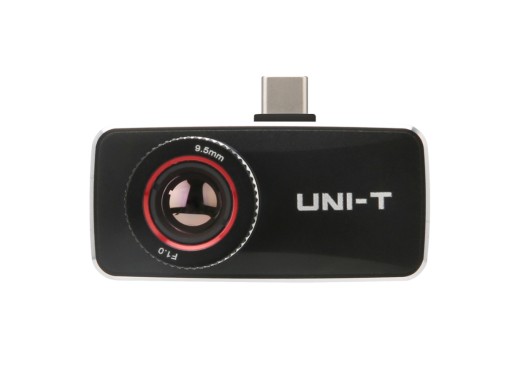

UNI-T UTi740MS thermal imaging camera for Android & iOS
Details
The UNI-T UTi740MS is a professional thermal imaging module for Android and iOS, which transforms your smartphone into a thermal imaging camera. The camera has a temperature range of -20 to 550°C, and a base resolution of 400x300 pixels, which increases to 800x600 pixels in super resolution mode. With a manual-focus 9.5mm lens, it ensures that the recorded images remain sharp and in focus for more accurate measurements. Lastly, the app for the UTi740MS is easy to use and has a number of useful features such as different colour palettes, picture-in-picture mode, fusion mode, and the ability to display up to 5 different temperature points. This makes it an excellent choice for professionals who require a large temperature range and a high resolution in a small form factor for fieldwork and complex imaging requirements.
Specifications
| Temperature range | -20 °C - 550 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| Focal length | 9.5 mm |
| IR resolution | 400 x 300 (120000 pixels) |
| Frame rate | ≤25 Hz |
| FOV | 29° x 21.5° |
| Emissivity | 0.01 ~ 1.00 adjustable (default 0.98) |
| Display | External |
| Colour palettes | White/Black/Red Hot, Rainbow, Ironbow |
| Connectivity | USB-C |
| Dimensions | 58 × 27 × 28.6 mm |
| Weight | 46 g |
Accessories
The UTi740MS comes with:
- 1x Type-C extension cable
- 1x Hand strap
- 1x Cleaning cloth
- 1x Cloth bag
Pros and cons
- 400x300 resolution
- Manual focus
- Compatible with both Android & iOS
Downloads
| UNI-T UTi740MS user manual |  (21.22 MB) | Download |
| UNI-T UTi740MS data sheet | (2.41 MB) | Download |
