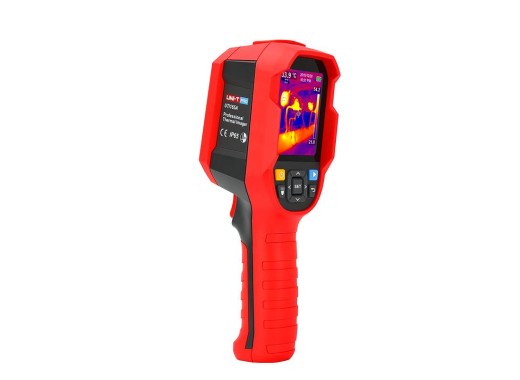

UNI-T UTi165A thermal imaging camera
Details
The UNI-T UTi165A is a thermal imaging camera with a high IR resolution of no less than 160 x 120 pixels. This means that this thermal imaging camera has a good price/quality ratio.
Images can be stored via an internal SD card, or via PC software. This makes it possible to analyse the images at a later time.
The UTi165A is equipped with a large battery, giving it a long service life. In addition, it is a robust camera that can withstand a fall of up to 2 meters.
Specifications
| Temperature range | -10 - 400℃ |
| Accuracy | ±2℃ or ±2% |
| Measurement resolution | 0.1℃ |
| Focus distance | 25 cm |
| IR resolution | 19200 (160x120) |
| Frame rate | 9 Hz |
| Field of view | 56° x 42° |
| Emissivity | 0.01 ~ 0.99 adjustable (default 0.95) |
| Picture mode | Thermal |
| Colour palette | Iron, rainbow, grey |
| Display | 2.8" TFT LCD Display (320x240) |
| Photographs | .BMP (320x240) |
| Battery | Rechargeable Li-ion (micro USB, ≥6 hours working time) |
| Storage | 16GB micro-SD card |
| Automatic power off | Yes |
| Dimensions | 236x75.5x86 mm |
| Weight | 455 g |
Accessories
The UTi165A is delivered including:- USB cable
- 16 GB micro-SD card
Pros and cons
- High IR resolution
- Great price/feature ratio
- Big size compared to Flir TG267
Downloads
| UNI-T UTi165A datasheet & manual |  (5.01 MB) | Download |
| UNI-T thermal imaging cameras datasheet | (266.22 KB) | Download |
