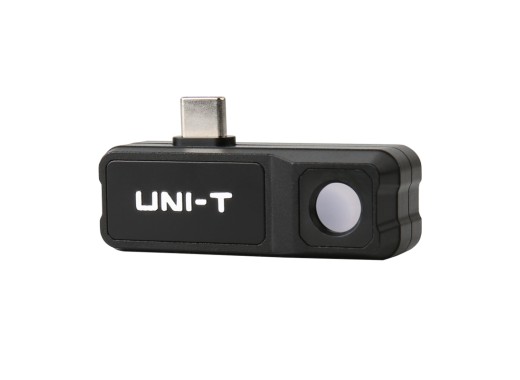

UNI-T UTi120M mobile thermal camera for Android
Details
With this compact USB-C thermal camera you can easily turn a recent Android smartphone into a full-fledged thermal imaging camera. The resolution of 120x90 pixels is sufficient to perform quick inspections of buildings or electrical installations. The required accompanying app supports up to 6 of each analysis point shapes which include: points/lines/rectangles/circles. There are also 7 color palettes available so you can choose your preferred colors. In the range of -20 to 400 °C, temperature differences of 0.1 °C can already be detected. The camera has a wide viewing angle of 50 degrees, a fast refresh rate of 25 Hz and a focus-free focusing mode. This camera support auto alarm and auto tracking, notifying you of high or low temperatures and automatically tracking these spots. It is possible to capture an image as well as record video.
Specifications
| Range | -20 to 400 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| IR resolution | 120 x 90 |
| NETD | <60 mK |
| FOV | 50° |
| Image modes | Thermal, Fusion and PIP |
| Other functions | Auto alarm for extreme temperatures, auto tracking, image capture/video recording, |
| Dimensions | 53 x 18.2 x 18.5 mm |
| Net weight | 25 g |
Accessories
The UNI-T UTi120M mobile thermal camera for Android includes:
- Micro USB adapter
- USB-C male to female extension cable
Pros and cons
- Compact and lightweight
- Sturdy (drop tested from 2m)
- Requires android smartphone
Downloads
| UTi120M manual |
 (6.95 MB) |
Download |
