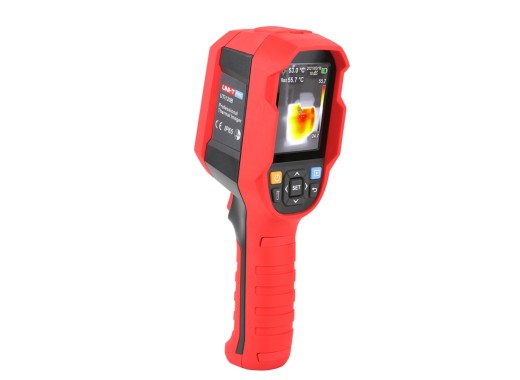

UNI-T UTi120B thermal imaging camera
Details
The UNI-T UTi120B is a thermal imaging camera with a resolution of 120 x 90 pixels and a temperature range of -20 to 400 °C. It also features a 2.8 inch TFT LCD display with a resolution of 320 x 240 pixels and a refresh rate of 25 Hz. In addition, this camera has a built-in visual light camera with a resolution of 640 x 480 pixels enabling digital and fusion image modes as well as digital photos on top of the IR image captures. The built in 5000mAh Li-ion battery offers an operating time of at least 6 hours and can be fully charged within 5 hours ensuring plenty of usage time before it requires recharging.
This camera offers other important features such as: palette with 5 colors, auto hot & cold spot tracking, alarm function, flashlight, image capture and pc software.
This camera can be considered to be very sturdy as it has an IP65 rating and been drop-tested up to 2m. It can be mounted on a tripod, because it features a 1/4 inch mount connector on the handle bottom.
Specifications
| Range | -20 to 400 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| IR resolution | 120 x 90 |
| NETD | ≤60 mK |
| Response time | 500 ms |
| FOV | 50° |
| Visual light resolution | 640 x 480 pixels |
| Visual light FOV | 81° |
| Image modes | Thermal, Fusion and Digital |
| Display | 2.8 inch TFT LCD (320 × 240 pixels) |
| Battery | At least 6 hours |
| Charge time | Quickcharge, 0-100% up to 5 hours |
| Dimensions | 500 x 315 x 295 mm |
| Net weight | 910 g |
Accessories
The UNI-T UTi120B thermal imaging camera includes:
- USB-A to USB-C cable
Pros and cons
- Digital camera
- Good battery life
- Very heavy (910 gram)
- Low IR resolution (120 x 90 pixels)
Downloads
| UTi120B User Manual |  (9.77 MB) | Download |
