UNI-T UTG9354T+ function generator
Details

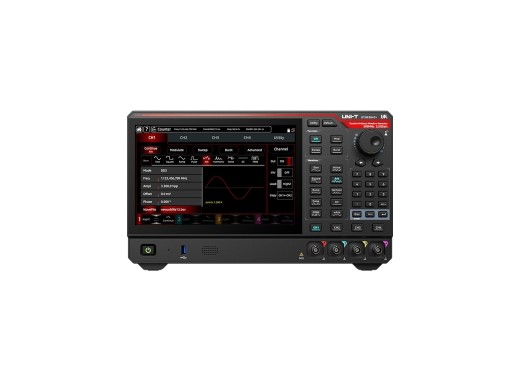

Note: images are of the UTG9504T+; however, the models are visually comparable.
The UNI-T UTG9354T+ is a premium function generator. Four equal-performance channels pair a 2.5GSa/s sample rate and 16-bit vertical resolution with a 350MHz bandwidth, while 128Mpts of arbitrary memory and point-by-point playback reproduce long, complex waveforms in fine detail. This makes the generator a strong fit for demanding signal generation in communications, R&D and education.
A broad set of advanced functions is included as standard, among them multi-pulse, multi-tone, sequence, I/Q, pattern and expression generation, alongside the full range of analogue and digital modulation. Digital protocol output for SPI, I2C and UART, one-key SNR, an 800MHz hardware frequency counter and an integrated waveform editor are all part of the standard configuration. A 10.1-inch capacitive touchscreen keeps operation straightforward, while USB and LAN interfaces with the bundled PC software enable full remote control and automated testing.
Model overview
| Model | UTG4104X | UTG4164X | UTG4254X | UTG9354T+ | UTG9504T+ |
|---|---|---|---|---|---|
| Bandwidth | 100 MHz | 160 MHz | 250 MHz | 350 MHz | 500 MHz |
| Price |
Specifications
| Channels | 4 |
| Vertical resolution | 16 bit |
| Sample rate | 2.5 GSa/s |
| Frequency resolution | 1 µHz |
| Amplitude range | 1 mVpp - 20 Vpp |
| Waveform length | 8 pts - 128 Mpts |
| Modulation | AM, DSB-AM, FM, PM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, QAM, PWM, SUM |
| Built-in functions | Sine, Square, Ramp, Pulse, Harmonic, Noise, PRBS, DC, Arbitrary (200+) |
| Advanced functions | Multi-pulse, multi-tone, sequence, I/Q, pattern, expression |
| Output impedance | 50 Ω |
| Interfaces | USB host, USB device, LAN, 10 MHz reference in/out |
| Display | 10.1-inch capacitive touchscreen (1280x800) |
| Dimensions | 361 x 209 x 106 mm |
| Weight | 4.5 kg |
Accessories
The UTG9354T+ is delivered with:
- 4x BNC to BNC cables
- 1x USB cable
- 1x Power cord
Pros and cons
- Multipulse, multitone, sequence and I/Q generation as standard
- Four equal-performance channels with coupling and merge
- 800MHz frequency counter and digital protocol output
- I/Q waveform creation needs the PC software
Downloads
| UNI-T UTG9000T+ datasheet |  (2.21 MB) | Download |
| UNI-T UTG9000T+ user manual | (20.85 MB) | Download |
