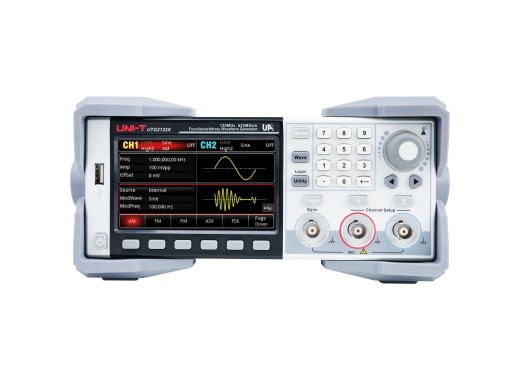

The UNI-T UTG2122X is a 16-bit, two-channel function generator in the UTG2000X series with a bandwidth of 120MHz.
It also has a precise and stable waveform output with a resolution as low as 1μHz, a high sample rate of 625MSa/s.
The UTG2122X can be used to construct long signals of up to 64Mpts.
These allow the function generator to generate low-jitter and low-distortion waveforms point by point.
The UTG2000X series also supports channel copying and stacking settings.
Additionally, the UTG2122X has multiple modulation modes and built-in standard waveforms.
Furthermore, it features a 4.3" TFT LCD touchscreen and supports SCPI through USB and LAN for easy usage and control.
There is also free PC software available for the UTG2000X series, which can be used for remote operation and monitoring.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Model overview
| Model |
UTG2062X
|
UTG2082X
|
UTG2122X
|
| Bandwidth |
60 MHz |
80 MHz |
120 MHz |
| Price |
479
€479.00
Excl. VAT
|
589
€589.00
Excl. VAT
|
859
€859.00
Excl. VAT
|
Specifications
| Channels | 2 |
| Vertical resolution | 16 bits |
| Sample rate | 625 MSa/s |
| Frequency resolution | 1 μHz |
| Amplitude range | 20 Vpp |
| Waveform length | 64 Mpts |
| Modulation | AM, FM, PM, FSK, ASK, PSK, PWM, DSB-AM, 3FSK, 4FSK, BPSK, QPSK, OSK, SUM, QAM |
| Built-in functions | Sine, Square, Pulse, Ramp, Noise, DC, Arb, Harmonic, PRBS, Expression, Multi Pulse |
| Output impedance | 50 Ω |
| Interfaces | USB host/device, LAN |
| Display | 4.3" TFT LCD (480x272) |
| Dimensions | 215 x 103 x 316 mm |
| Weight | 2.5 kg |
Accessories
The UNI-T UTG2122X comes with:
- Power cord
- USB cable
- BNC to BNC cable
- BNC to alligator clip cable
Pros and cons
- 16 bit
- Long signals of up to 64Mpts can be constructed
- High sample rate
- Strong performance for price
