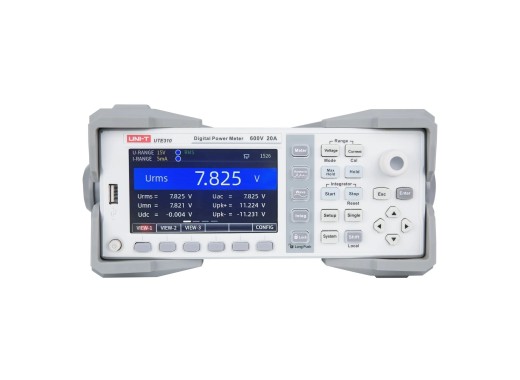

UNI-T UTE310 power meter
Promotion! This product is temporarily reduced in price until September 30th 2026!
Details
The UNU-T UTE310 is a highly accurate signle channel programmable digital power meter, with a test bandwidth of 0.1 Hz to 300 kHz + DC, with a 300 kHz sampling rate.
This meter has several connectivity options, measurements can be retrieved and stored through the RS-232, USB, LAN and GPIB interfaces. Up to 4 out of the many different measurement parameters can be displayed simultaneously, in addition to display modes for waveforms and harmonic measurements. Furthermore, by using the included integration function, energy consumption can be analysed as well.
Finally, the UTE310 is compliant with IEC 61000-4-7, making it suitable to carry out (inter)harmonic measurements for EMC testing.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Specifications
| Channels | 1 |
| Bandwidth | DC, 0.1 Hz - 300 kHz |
| Maximum voltage AC/DC | 600 Vrms |
| Maximum current AC/DC | 20 Arms |
| Powr range AC/DC | 75 mW – 1200 W |
| Powr resolution | 1 µW |
| A/D resolution | 16 bits |
| Basic accuracy | 0.1 % |
| Sample rate | 1 MHz |
| Output parameters | U, I, P, S, Q, LAMBDA, PHI, FU, FI, UPK, IPK, WH, WHP, WHM, AH, AHP, AHM, MATH |
| Display | 4.3” TFT-LCD |
| Interfaces | USB, RS-232, GPIB, LAN |
| Dimensions | 330.2 x 127 x 279.4 mm |
| Weight | 2.6 kg |
Accessories
The UTE310 comes by default with:
- Power cord
- 1 x Safety test lead
- 4 x Y terminal test lead
- 2 x Alligator clip
- Protective cover
Pros and cons
- Highly accurate
- 300 kHz test bandwidth
- Many measurement parameters
Downloads
| UNI-T UTE310 datasheet |  (1.09 MB) | Download |
| UNI-T UTE310 manual | (4.83 MB) | Download |
