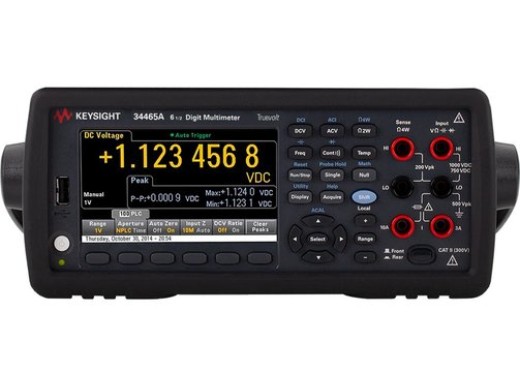

The Keysight 34465A multimeter is the more extensive version in the 34460A series of Keysight.
The multimeters in this series are reliable and easy to use multimeters.
They perform 1000/5000 measurements per second, with a DCV precision of 35/30 ppm.
Due to the possibility of low DC current measurements (100 μA - 10A), they are suitable for testing
low-power devices. The multimeters can perform various measurements, including
resistance, frequency and capacitance measurements. These multimeters can also be used to measure
continuity tests and to carry out diode tests.
The measurement results are displayed well on the bright 6½-digit LED colour screen.
A big advantage of this series is that there are possibilities to display the data
in a histogram, bar graph or a trend graph. Also, the meters can be connected
to the computer via a USB or LXI interface. With the BenchVue Software from Keysight
you can easily log data, create test sequences, export data and control the meters.
The exported data can be easily documented with Matlab, Microsoft Excel or
Microsoft Word.
Models
The models within the 34460A series differ from each other in:
| Model | 34461A | 34465A |
|---|
| Max. Measurement speed |
1000 measurements/s |
5000 measurements/s |
| Memory |
10000 measurements |
50000 measurements |
| Base DCV accuracy |
35 ppm |
30 ppm |
| DC current range |
100 μA - 10 A |
1 μA - 10 A |
| Price |
1502
€1,502.00
Excl. VAT
|
1919.33
€1,919.33
Excl. VAT
|
Specifications
| Measuring range | |
| Max. DC Voltage | 1000 V |
| Max. AC Voltage | 750 V |
| Max. DC Current (34461/34465) | 10 A |
| Max. AC Current | 10 A |
| Max. resistance | 100 MΩ |
| Frequency | 3 Hz - 300 kHz |
| Max. capacitance | 100 μF |
| Continuity Test | 1 kΩ |
| Diode test | 5 V |
| True RMS |
Yes
|
| Math functions | min/max/avg/Sdev/dB/dBm/span/count/limit test/histogram |
| Acts | USB, LXI |
| Display (Resolution) | 4.3" TFT (6 1/2 digits) |
| Dimensions | 261.2 x 103.8 x 303.2 mm |
| Weight | 3.76 kg |
| Guarantee | 3 years |
Accessories
The Keysight 34460A series comes standard with:
- 34138A test leads set
- Fine point probes
- SMT grabs set
- USB cable
- Power cord
- Calibration certificate
- CD-Rom with User Guide and software
(1.65 MB)
