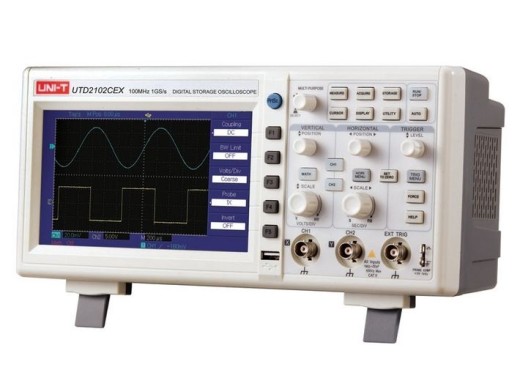

UNI-T UTD2102CEX oscilloscope
Details
The UNI-T UTD2102CEX is a 2 channel oscilloscope with an outstanding price-quality ratio. The scope has a high bandwidth of 100MHz and a large sample rate of 1GSa/s. What makes the UTD2102CEX so special is that the memory depth is quite high in comparison with its competitors (for instance the Owon SDS1102). Furthermore, a USB-interface is available for storage of signals and measurements.
Specifications
| Bandwidth | 100MHz |
| Channels | 2 |
| Sample rate | 1GSa/s |
| Memory depth | 25Kpts |
| Waveform capture rate | >=2000wfms/s |
| Trigger types | Edge, Pulse, Alternate |
| Vertical scale | 1mV/div - 20V/div |
| Horizontal scale | 2ns/div - 50s/div |
| Display | 7" 800x480 TFT LCD |
| Weight | 2.2kg |
| Dimensions | 306 x 147 x 122mm |
Accessories
The UNI-T UTD2102CEX gets delivered including:
- 2 Probes
- Power cord
- USB Cable
- PC Software
Downloads
| UNI-T UTD2000-3000 Manual |  (2.59 MB) | Download |
| UTD2000 series manual | (2.03 MB) | Download |
