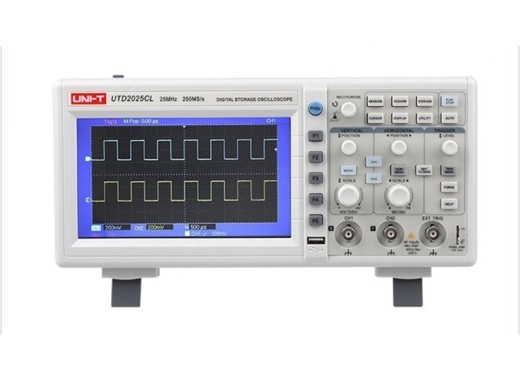

UNI-T UTD2025CL oscilloscope
Details
The UNI-T UTD2025CL Oscilloscope is ideal for beginners or students at school because of the basic specifications. It has 2 analog channels with a high sensitivity and it can process signals with a frequency up to 25MHz. The oscilloscope has digital storage and it supports plug-and-play USB storage devices. Although the memory size is a bit low it will be fast enough for your basic measurements.
The oscilloscope has an unknown price-quality ratio for 2 channels and a bandwidth of 25MHz.
Specifications
| Bandwidth | 25Mhz |
| Channels | 2 |
| Sample rate | 250Ms/s |
| Memory depth | 25kpts |
| Waveform capture rate | >=2000wfms/s |
| Trigger modes | Edge, Pulse, Video, Alternate |
| Vertical sensitivity | 1mV/div ~ 20V/div |
| Horizontal range | 10ns/div ~ 50s/div |
| Display | 7" 400x240 TFT LCD |
| Interface | USB OTG, Pass/Fail |
| Dimensions | 306 x 147 x 122mm |
| DWeight | 2.2kg |
Accesoires
The UNI-T UTD2025CL is delivered with:
- 2 Probes
- Power Cord
- USB Cable
Downloads
| UNI-T UTD2000-3000 Manual |  (2.59 MB) | Download |
| UTD2000 series manual | (2.03 MB) | Download |
