Product number: ELE001914

Be the first to review this product

Promotion! This Siglent oscilloscope now includes a free function generator software license (SDS1000X-E-FG) and a free logic analyser software license (SDS1000X-E-16LA)! The promotion is valid until June 30th 2024. Be aware, this promotion only includes the mentioned software licenses and does not include the hardware (function generator/logic analyser).

Details

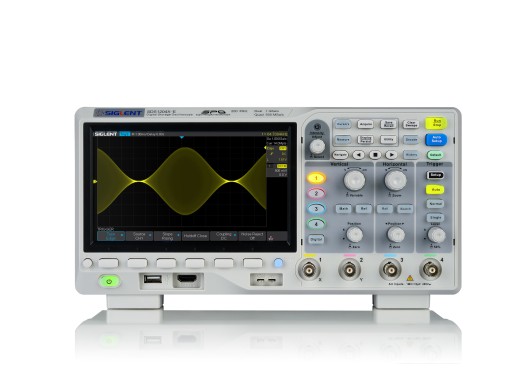

The Siglent SDS1204X-E is the new 4-channel version of the very popular 1202X-E. This scope offers a lot of quality at a really affordable price. The special signal processing hardware in this scope makes it possible to measure very quickly and responsively and due to the high waveform capture rate it is possible to analyze every peak in the signal.
The scope has 2 ADCs so that, without any loss of sample rate, 2 channels can be measured at the same time. Even with 4 channels active, the scope still has 500MS/s available per channel.

The scope uses a "Super Phospor" technology that provides an exeptional signal display and ensures a very low amount of noise in the signal. Due to this technology the minimal voltage per division is only 500µV. Another part of this technology is a new way of constantly triggering the signal regardless of what the CPU and screen are doing at that time. This way the scope can detect errors that conventional scopes might not have detected.

Quite unique is that the SDS1204X-E scope comes standard with a decoding capability for serial signals. This way the scope is able to decode l2C, SPI, UART, RS232, CAN and LIN signals from the start, which makes the scope even more widely applicable.

Options

Optionally, this scope can be extended with a 25MHz function generator and a 16-channel logic analyzer. Because these options are connected to the scope via USB it is possible to add these expansions later. With these options almost everything can be done with the scope.

The scope can also be connected to the internet with either a network-cable or an optional WiFi dongle. This way the scope can be operated via a webpage in a browser. It is also possible to operate the scope with SCPI commands.

Specifications

Bandwidth 200 MHz
Channels 4
Memory 14 Mpts per channel
Vertical scale 500 µV/div - 10 V/div
Horizontal scale 1 ns/div - 100 s/div
Probe attenuation 0.1X, 0.2X, 0.5X, 1X, 2X, 5X, 10X......1.000X, 2.000X, 5.000X, 10.000X
Waveform capture rate 100.000 wfm/s (normal), 400.000 wfm/s (sequence mode)
Trigger types Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
Connectivity USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO), WiFi via dongle
Decode Possibilities IIC, SPI, UART/RS232, CAN, LIN
Display 7" TFT LCD (800x480)
Dimensions 325 x 176 x 295 mm
Weight 2.5 kg (3.5 kg inc. Box)

Options

Function generator This option is externally connected to the scope and is able to generate 25 MHz signals on one channel. The generated signals have a length of 16 kPts and the sample rate of this generator is 125 MHz.

25 MHz functiegenerator

Siglent SAG1021I function generator
95 €95.00 Excl. VAT
Info
Logic analyzer With this 16-channel logic analyzer it is possible to analyze digital signals. The specifications of this product can be found on the product page on the right.

Logic analyzer

Siglent SLA1016 logic analyser
95 €95.00 Excl. VAT
Info
Wifi With this option it is possible to provide the SDS1104X-E and SDS1204X-E with WiFi. With WiFi it is possible to log data and operate the scope via a webpage.

WiFi dongle

Siglent SDS1000X-E-WIFI
60 €60.00 Excl. VAT
Info

Accessories

  • USB cable
  • 4 Passive probes
  • Certificate
  • Power cord

Pros and cons

  • 4CH scope with high performance
  • Expandable (func. gen + logic)
  • Supports bode plot
  • Built-in webserver
