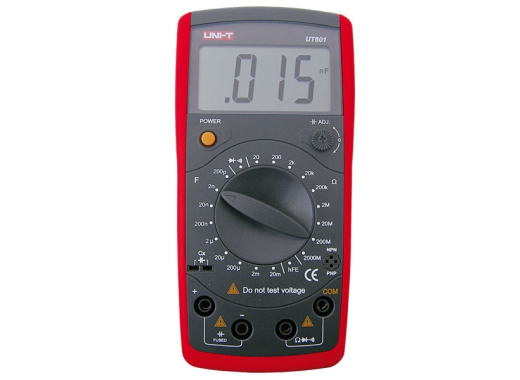

UNI-T UT601 capacitance meter
Details
The UT601 series from UNI-T are compact hand-held capacitance meters with a good price/quality ratio. These meters can easily measure the capacitance of a component. In addition, the meter can also indicate resistance and continuity. The 2,000-counts” display is all you need for basic applications.
The UT601 can also measure the hFE of a pnp or npn-transistor.
Specifications
| Measuring range and accuracy | |||||||
| |||||||
| Display | 2,000 counts / 3 1/2 digit | ||||||
| Measuring frequency | 2 - 3 times per second | ||||||
| Power supply | 9 Volt batteries (6F22) | ||||||
| Dimensions | 172 mm × 83 mm × 38 mm | ||||||
| Weight | 310 g | ||||||
Please refer to the user manual below for more information.
Accessories
The UT601 series comes with:
- User manual
- Test probes
- Battery
- Stand
Downloads
| UT601-Manual-en |  (3.64 MB) | Download |
