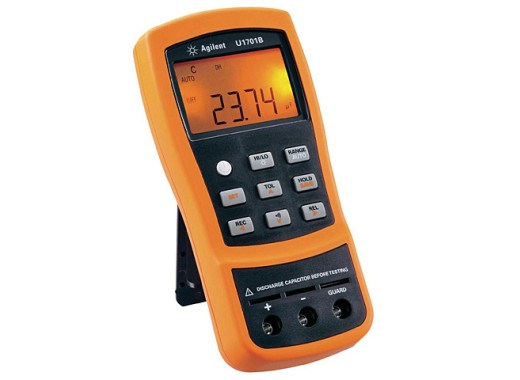

Keysight U1701B capacitance meter
You get 3 years on-site warranty directly through Keysight.
Details
This dual display capacitance meter can measure from 0.1 pF up to 199.99 mF. The meter has a special mode to sort capacitors by means of the display and audio signals. There are 25 sets of lower and upper limits that can be set in this sorting mode.
In addition to the normal measurements, this meter has a relative measurement mode and HOLD function and it is also possible for
minimum, maximum and average values to be remembered.
The backlight intensity can easily be adjusted with a button, allowing this meter to be used in less bright environments.
For more information you can find the datasheet of this meter at the bottom of this page.
Specifications
| Range | Resolution | Accuracy | Measuring frequency |
|---|---|---|---|
| 1000 pF | 0.1 pF | 1.0%+10 | 5 times/s | 10 nF | 0.001nF | 1.0%+5 | 5 times/s | 100 nF - 100 μF | 0.01 nF - 0.01μF | 0.5%+3 | 5 times/s | 1000μF | 0.1μF | 0.5%+3 | 0.86 | 10 mF | 0.001 mF | 1.0%+5 | 0.13 | 199.9 mF | 0.01 mF | 2.0%+5 | 0.006 |
| Display | 4 1/2 digits LCD, 11,000 counts | ||
| Power supply | 9 V (80 hours service life) | ||
| Weight | 320 g | ||
| Dimensions | 184 x 87 x 41 mm |
Accessories
This meter comes standard with:- Quick start guide
- Certificate of Calibration
- Crocodile clamp wires
- 9V battery
Downloads
| Keysight U1701B datasheet |  (631.02 KB) | Download |
