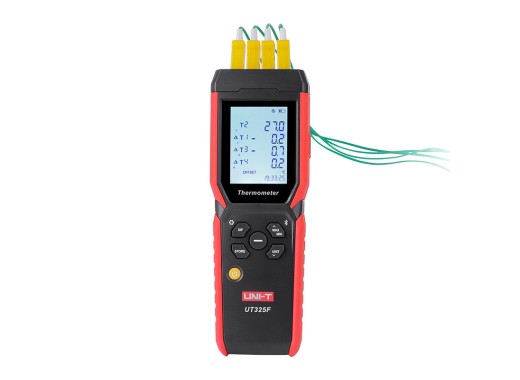

UNI-T UT325F thermometer
Details
The UNI-T UT325F is a 4-channel thermometer and logger which accepts 7 types of thermocouples. The temperature range depends on the thermocouple used, with the included K-type thermocouple ranging from -200 to 1372°C. The unit can also display the temperature difference between the channels and set an offset value for temperature compensation. This makes it ideal for use in research, industrial and educational fields. Lastly, the UT325F can connect to either a PC via the USB Type-C cable or to the smartphone app via Bluetooth data transmission, where recorded data can be viewed and exported for processing.
Specifications
| Compatible thermocouples: | |
| Type T thermocouple range | -250 - 400 °C |
| Type J thermocouple range | -210 - 1200 °C |
| Type K thermocouple range | -200 - 1372 °C |
| Type N thermocouple range | -200 - 1300 °C |
| Type E thermocouple range | -150 - 1000 °C |
| Type R thermocouple range | 0 - 1767 °C |
| Type S thermocouple range | 0 - 1767 °C |
| Accuracy | ±0.2 % + 0.5 °C |
| Data logging | 72000 points |
| Connectivity | USB-C / Bluetooth |
| Battery | > 30 hours |
| Dimensions | 178 x 63 x 38 mm |
Accessories
The UT325F comes with:
- 3x AAA battery
- 4x K-type thermocouples
- 1x USB-C data cable
- 1x Carry case
Pros and cons
- Can use application-specific thermocouple
- Δ Temperature mode
- Large data storage
Downloads
| UT325F User Manual |  (4.5 MB) | Download |
| UT325F Data Sheet | (12.28 MB) | Download |
