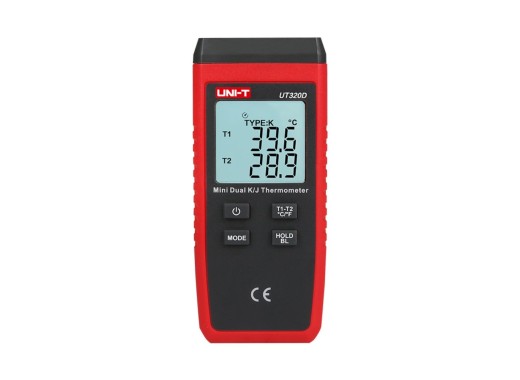

UNI-T UT320D thermometer
Details
The UNI-T UT320D is a 2-channel contact thermometer that accepts both type-K and J thermocouples. The temperature range depends on which thermocouple is used, with the included type-K thermocouple having a wide temperature range of -50-1300℃. The unit can also display the temperature difference between the two channels. Other features of the thermometer include a backlight, data hold and auto power off functions. The UT320D also has a compact form factor, as well as a fast sampling rate of 4Hz. All of these make the UT320D a great, affordable thermometer for use in the field.
Specifications
| Channels | 2 |
| Compatible thermocouples | |
| Type-J thermocouple range | -50 - 1200 ℃ |
| Type-K thermocouple range | -50 - 1300 ℃ |
| Accuracy | ±(0.2% + 1) |
| Other functions | Auto power-off, data hold, backlight, max/min/avg, low battery indication |
| Display | 37.4 x 36.4 mm |
| Dimensions | 120 x 53 x 28 mm |
| Weight | 60 g |
Accessories
The UNI-T UT320D comes with:
- 3x AAA battery (R03)
- 2x UT-T01 type-K thermocouples
- 1x Plastic holder
Pros and cons
- Affordable
- Easy to measure temperature on the spot
- Wide temperature range
- No log function
Downloads
| UNI-T UT320D user manual |  (1.4 MB) | Download |
| UNI-T UT320 series datasheet | (1.67 MB) | Download |
