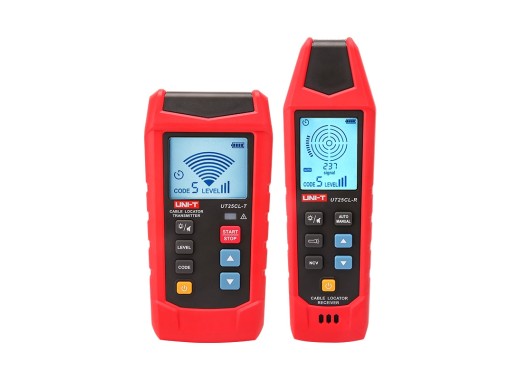

The UNI-T UT25CL cable locator is a device consisting of a transmitter and receiver. The device operates at a frequency of 33kHz, detects voltages from 8 to 480V, and has a tracing depth of 0 to 2.5 meters in unipolar mode and 0 to 0.4 meters in bipolar mode. The cable locator can find wires and interruptions inside walls. Furthermore, the UT25CL can trace underground cables, locate fuses, detect low voltage wires (short circuits; open circuits), trace metal pipes and identify AC/DC polarity. Both the transmitter and receiver have a built-in torch and a backlit LCD. The receiver is capable of operating with up to 8 transmitters.
Specifications
| Transmitter | |
| Output frequency | 33 kHz |
| Energisesd wire voltage range | 8 - 480 V |
| Accuracy | 2.5% ± 3 deg |
| Pollution degree | 2 |
| Battery | 6 × 1.5V AA |
| Dimensions | 189 x 96 x 48 mm |
| Weight | 389 g |
| Receiver | |
| Receiving frequency | 33 kHz |
| Tracing depth for single pole | 0 - 2.5 m |
| Tracing depth for dual poles | 0 - 0.5 m |
| Grid voltage identification | 0 - 0.4 m |
| NCV | 80 - 1000 V |
| Battery | 6 × 1.5V AAA |
| Dimensions | 226 x 68 x 38 mm |
| Weight | 287 g |
| Operating altitude | ≤ 2000 m |
| Display | Segmented LCD (TN translucent) |
Accessories
The UT25CL comes with:
- Dual in-line test leads
- Alligator clips
- Lantern-tip test probe
- AC polarized plug wire
- 6x 1.5V AA alkaline battery
- 6x 1.5V AAA alkaline battery
- Hard carrying case
