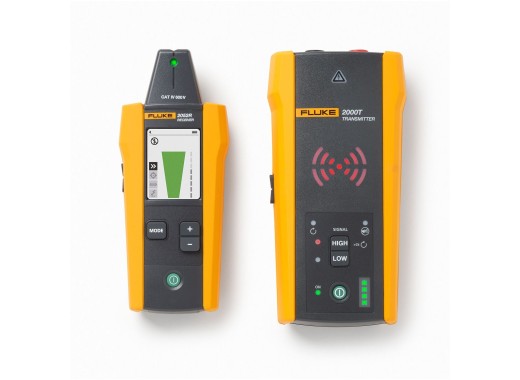

Fluke 2052 advanced wire tracer kit
Details
The Fluke 2052 advanced wire tracer kit can accurately and safely trace energised- and de-energised wires in walls, ceilings, and floors It can trace wires up to CAT IV 600V, provides protection against spikes of up to 8000V, and is designed to help find breaks, opens, and shorts in the wiring. Due to the implemented safety features, the Fluke wire tracer is also usable on critical high-voltage equipment that cannot be switched off. Furthermore, the Fluke receiver has 4 tracing modes for different tracing needs and 3 different transmitter power modes. The 2000T transmitter automatically senses whether a wire is energised or de-energised and selects either a 6kHz or 33kHz output frequency. Signal indications are displayed via a numeric & bar-graph display and an audible beep.
Specifications:
| Measurement category | CAT IV 600 V |
| Operating voltage | 600 V AC/DC (transmitter), 1000 V AC (i400 current clamp) |
| Operating frequency | Energized: 6.25 kHz, De-Energized: 32.768 kHz |
| Receiver tracer modes | Quick scan, precision, breaker, non-contact voltage detection |
| Transmitter power modes | Low power, high power, loop |
| Output frequencies | 6 kHz, 33 kHz |
| Sensitivity levels | 8 adjustable levels (receiver) |
| Max range | Up to 6.1 m (20 ft) |
| Response time | 500 ms |
| Dimensions | 183 x 75 x 43 mm (receiver), 183 x 93 x 50 mm (transmitter), 150 x 70 x 30 mm (current clamp) |
| Weight | 0.27 kg (receiver), 0.57 kg (transmitter), 0.114 kg (current clamp) |
Accessories
The Fluke 2052 advanced wire tracer kit comes with the following accessories:
- 1x Fluke 2052R Advanced wire tracer receiver
- 1x Fluke 2000T Advanced wire tracer transmitter
- 1x i400 AC current clamp
- 1x Fluke 2000ACC test lead accessory kit for 2052/2062
- 1x Premium hard carrying case
- 12x AA Alkaline batteries
- A complete kit with advanced wire tracer
Pros and cons
Downloads
| Fluke 2052R user manual |  (11.25 MB) | Download |
| Fluke 2052R reference guide | (11.21 MB) | Download |
| Fluke 2052 datasheet | (262.27 KB) | Download |
