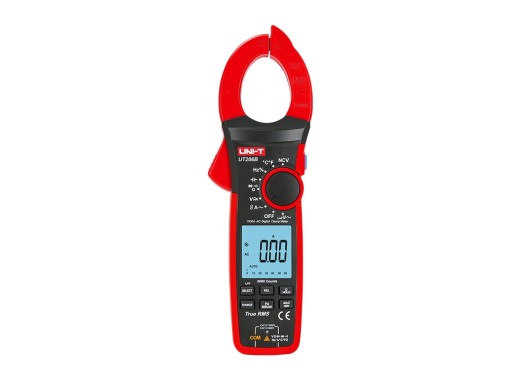

The UNI-T UT206B is a True-RMS current clamp with an integrated multimeter that can measure AC current/voltage and DC voltage up to 1000 A/V. The meter has a 6000-count display with backlight, making it easy to read the measurements and a flashlight for darker spaces. In addition, it is possible to measure resistance, capacitance, frequency and temperature, using the supplied test wires and thermocouple, with the best possible temperature resolution of 0.1 °C. The NCV function allows wires with voltage to be detected quickly, before they can cause any damage. The UT206B features Autorange, which automatically selects the correct measurement range. It is also possible to set the desired measurement range manually. Furthermore inrush current, LPF and LoZ are also available. The UNI-T UT-CS09D is a flexible current clamp sensor that can be connected to this current clamp for more versatility when measuring.
The model overview of the current clamps from the UT200 series can be found below.
Model | UT206B | UT207B | ||||||
---|---|---|---|---|---|---|---|---|
DC current (clamp) | Temperature
| Price
|
|
| |
Display resolution | 6000 counts |
AC voltage | 0.001 V - 1000 V |
DC voltage | 0.1 mV - 1000 V |
AC current | 0.01 A - 1000 A (>500 A for 60s) |
Resistance | 0.1 Ω - 60.00 MΩ |
Capacitance | 0.01 nF - 60.00 mF |
Frequency | 0.01 Hz - 1 MHz |
Temperature | -40 - 1000 ℃ |
Jaw opening | 42 mm |
Other functions | Diode, Continuity, Min/Max record, Peak/Data hold, auto power off, LoZ, LPF, NCV, inrush current |
Power supply | 1.5 V battery x 3 |
True-RMS | Yes |
Data logging | Yes |
Display | 2.5" LCD |
Dimensions | 355 x 330 x 315 mm |
Weight | 465 g |
The UNI-T UT206B is supplied including:
