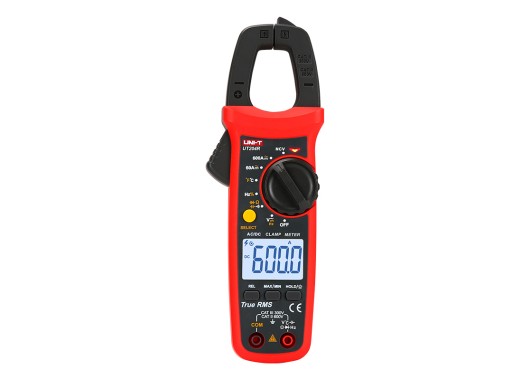

UNI-T UT204R clamp meter
Details
The UNI-T UT204R is a True-RMS current clamp with an integrated multimeter that can measure AC and DC current up to 600A. The meter has a 6000-count display with backlight, making it easy to read the measurements. In addition, it is possible to measure AC and DC voltages, resistance, capacity, frequency and temperature, using the supplied test wires and thermocouple. The NCV function allows wires with voltage to be detected quickly, before they can cause any damage. The UT204R features AutoRange, which automatically selects the correct measurement range. It is also possible to set the desired measurement range manually.
All in all, the UNI-T UT204R is a versatile current clamp at a competitive price!
Model overview
Below you will find a comparison with the comparable UNI-T UT201R current clamp. The main differences are in the measuring possibilities and the precision of the meters.
| Model | UT201R | UT204R |
|---|---|---|
| AC current | ||
| DC current | ||
| AC voltage | ||
| DC voltage | ||
| Resistance | ||
| Capacity | ||
| Temperature | ||
| Frequency |
Specifications
| Measurement range and accuracy | |||||||||||||||||
| |||||||||||||||||
| True-RMS | Yes |
||||||||||||||||
| Safety category | CAT II 600 V and CAT III 300 V | ||||||||||||||||
| Display count | 6000 | ||||||||||||||||
| LCD backlight | Yes |
||||||||||||||||
| Other functionalities | Continuity, NCV, auto range, diode test, data hold, max mode, auto power off, full icon display and low battery indication | ||||||||||||||||
| Power supply | 1.5 V batteries (x2) | ||||||||||||||||
| Maximum conductor size | 28 mm | ||||||||||||||||
| Weight | 235g | ||||||||||||||||
| Dimensions | 215 mm x 63.5 mm x 36 mm | ||||||||||||||||
Accessories
The UT204R is supplied including:
- Carrying pouch
- Test leads
- Thermocouple type K
Pros and cons
- Versatile current clamp for a great price!
- AC & DC current up to 600A
Downloads
| UNI-T UT203R and UT204R manual |  (8.61 MB) | Download |
