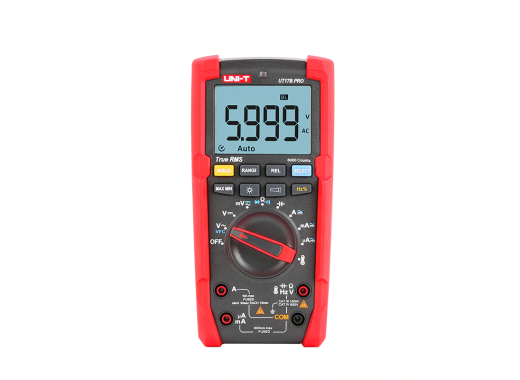

The UNI-T UT17B PRO is a quick, accurate and robust true-RMS multimeter. In addition to the normal functions, this meter also features a number of exceptional features such as VFC mode, full range mis-operation protection and capacitance ,frequency, duty cycle and temperature measurements. The VFC mode can be used to accurately measure signals with a variable frequency. Furthermore, due to the mis-operation protection, the meter is protected against damage when the knob is turned in the wrong position while performing a measurement.
This multimeter also has a backlit LCD, flashlight and is drop resistant up to one meter which makes it useful in almost all environments.
Models
The main differences between the UT15B Pro and UT17B Pro are that the '17' can measure temperature, frequency and duty cycle while the '15' can not.
| Model |
UT15B PRO
|
UT17B PRO
|
| Frequency |
No |
Yes |
| Temperature meter |
No |
Yes |
| Duty cycle |
No |
Yes |
| Price |
57.81
€57.81
Excl. VAT
|
69.38
€69.38
Excl. VAT
|
Specifications
| Measurement ranges |
| Max. DC voltage | 1000 V |
| Max. AC voltage | 1000 V |
| VFC | 600 V |
| Max. DC current | 10 A |
| Max. AC current | 10 A |
| Max. Resistance | 60 MΩ |
| Max. Capacitance | 6000 uF |
| Frequency | 10 Hz - 100 kHz |
| Temperature | -55 °C - 500 °C (±0.4%) |
|
| True-RMS | Yes |
| Other functions | Diode-/continuity test, max/min/relative mode ,Duty cycle |
| Category | CAT III 1000V/CAT IV 600V |
| Display | 6000 counts LCD |
| Power supply | 2x 1.5V LR6 |
| Weight | 484 g |
| Dimensions | 195 x 95 x 58 mm |
Accessories
The UT17B PRO is delivered including:
(7.58 MB)
