UNI-T UPO1102CS oscilloscope
Details

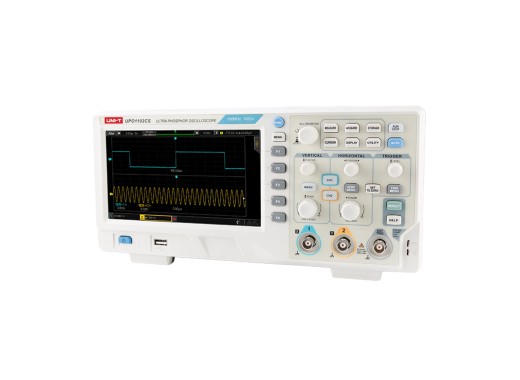

The UNI-T UPO1102CS is a multi-function, digital phosphorus oscilloscope with 2 channels, a bandwidth of 100 MHz and a maximum sample rate of 1 GSa/s. This phosphor oscilloscope can present three-dimensional waveform data of amplitude, time and signal intensity. This oscilloscope is fast with a waveform capture rate of 500.000 wfm/s and with a maximum memory depth of 56 Mpts. The oscilloscope comes with serial decoding capabilities, which is a good feature for a oscilloscope of this price range, as these are often only offered with more expensive oscilloscopes.
With the multi-scope of the UPO1102CS, signals with different clock sources can be individually set up and this is convenient to analyse the waveform parameters. The UNI-T UPO1102CS has a 1 Mpts FFT that works as a spectrum analyser with functions such as frequency range, detection mode and spectrum marking. The oscilloscope has a built-in webserver, with which the oscilloscope can be connected and remotely controlled via the web page of UNI-T.
Model overview
UNI-T offers two models in the UPO1000CS series which differ in bandwidth, horizontal scale and rise time.
| Model | UPO1102CS | UPO1202CS |
|---|---|---|
| Bandwidth | 100 MHz | 200 MHz |
| Horizontal scale | 2 ns/div - 1000 s/div | 1 ns/div - 1000 s/div |
| Rise time | < 3.5 ns | < 1.8 ns |
| Price |
Specifications
| Channels | 2 |
| Memory depth | 56 Mpts (per channel) |
| Sample rate | 1 GSa/s (per channel) |
| Waveform capture rate | 500.000 wfm/s |
| Vertical resolution | 8 bits |
| Vertical scale | 1 mV/div - 20 V/div |
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out |
| Decoding options | RS232, I2C, SPI, CAN, LIN |
| Display | 7" TFT LCD (800x480) |
| Dimensions | 306 x 138 x 107 mm |
| Weight | 3.0 kg |
Accessories
The UPO1102CS oscilloscope comes with:- USB cable
- Power cord
- Passive probe UT-P04
Pros and cons
- Multi-scope
- Good FFT over 1 million points
- High memory depth with 56 Mpts
- The fan generates a fair amount of audible noise when turned on
Downloads
| UNI-T UPO1000CS Series User Manual |
 (3.6 MB) |
Download |
| UNI-T UPO1000CS Series Quick Guide |
(1.01 MB) |
Download |
| UNI-T UPO1000CS Series Data Sheet |
(1.45 MB) |
Download |
