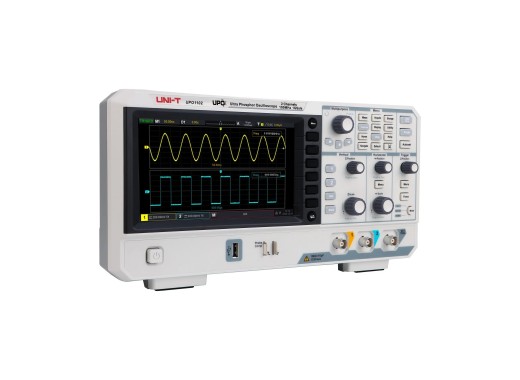

UNI-T UPO1102 oscilloscope
Details
The UNI-T UPO1102 is a multi-function digital phosphor oscilloscope with 2 channels, a bandwidth of 100 MHz, 8-bit vertical resolution, and a maximum sample rate of 1GSa/s. This oscilloscope is fast, with a waveform capture rate of 100.000wfm/s or 500.000wfm/s with the fast acquire mode, and with a maximum memory depth of 56Mpts. The oscilloscope comes with I2C, SPI and RS232 decoding capabilities, which is a good feature for an oscilloscope of this price range, as these are often only offered with more expensive oscilloscopes.
With the multi-scope of the UPO1102, signals with different time bases can be individually set up for easy waveform analysis. Furthermore, the UNI-T UPO1102 has a 1Mpts FFT that functions as a spectrum analyser, with features such as waterfall plots, display modes, and spectrum marking. The oscilloscope has a built-in web server, with which the oscilloscope can be connected and remotely controlled. Overall, the UPO1102 is a great budget oscilloscope, packed with many software features found on higher-end scopes.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Specifications
| Bandwidth | 100 MHz |
| Channels | 2 |
| Memory depth | 56 Mpts |
| Sample rate | 1 GSa/s (per channel) |
| Waveform capture rate | 100.000 wfm/s |
| Horizontal scale | 1 ns/div - 1000 s/div |
| Vertical resolution | 8 bits |
| Vertical scale | 500 μV/div - 20 V/div |
| Rise time | < 3.5 ns |
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out |
| Decoding options | RS232, I2C, SPI |
| Display | 7" TFT LCD (800x480) |
| Dimensions | 336 x 164 x 105 mm |
| Weight | 2.5 kg |
Accessories
The UPO1102 oscilloscope comes with:- 1x USB cable
- 1x Power cord
- 2x Passive probe UT-P04
Pros and cons
- Serial decoding
- FFT
- Good price/performance
