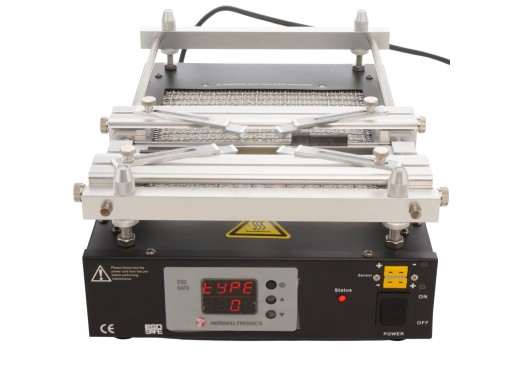

Thermaltronics PH300 preheater
Details
This Thermaltronics PH300 preheater has a digital display and is controlled by an internal microcontroller for precise temperature control. The 850W infrared preheater has a heating area of 200 x 250 mm and is delivered including a board holder that can hold PCBs with a length up to 270mm. Two K-type thermocouples are included to measure the exact temperature at a specific spot. Furthermore, this system supports three heating modes to manage all sorts of soldering applications.
Model overview
| Model | PH300 | PH600 |
|---|---|---|
| Power | 850 W | 1500 W |
| Heating area | 200 x 250 mm | 310 x 310 mm |
| Price |
Specifications
| Temperature | 50°C - 400°C |
| Heating element | Infrared |
| ESD - safe |
Yes
|
| Max. allowable PCB length | 270 mm |
| Weight | 3.8 kg |
| Dimensions (W x H x D) | 260 x 90 x 410 mm |
Accessories
The Thermaltronics PH300 will be delivered with:
- PH-KTC-1 thermocouples K-type (pack of 2)
Pros and cons
- Including two thermocouples
- Large heating area
- No advanced (custom) heating profile options
Downloads
| Thermotronics PH300 preheater manual |  (768.02 KB) | Download |
