Thermal Master X2 thermal camera for iOS
Details

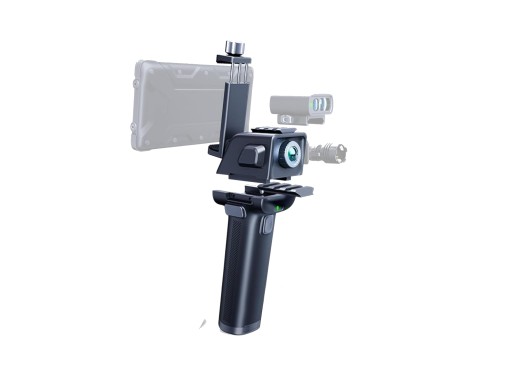

The product images show the USB-C model; this iOS version is visually identical but features a Lightning connector.
The Thermal Master X2 thermal camera is a camera module that allows you to turn an iPhone into a thermal imaging camera. The X2 can see up to 900 meters, which is a lot further than standard thermal imaging cameras. Together with the high frame rate of 50Hz to display fast movements clearly, this camera is great for outdoor use. The camera has an IR resolution of 256x192 (49152 pixels) and has a 15x digital zoom, with a range of 900m. This model connects via a Lightning connector and is only compatible with iOS. Finally, night vision is included, and the X2 performs well in harsh environments like fog and rain.
Note: The thermal camera is by default integrated inside the handgrip. It is possible to attach the X2 directly to your iPhone's Lightning port. We also offer an additional display.
Model overview
| Model | X2 (Android / iOS ) | X3 | T2 Max |
|---|---|---|---|
| Focal length | 13 mm | 15 mm | 15 mm |
| IR resolution | 256 x 192 (49152 pixels) | 384 x 288 (110592 pixels) | 256 x 192 (49152 pixels) |
| NETD | ≤ 40 mK | ≤ 25 mK | ≤ 20 mK |
| Frame rate | 50 Hz | 60 Hz | 50 Hz |
| Detection range | 900 m | 1500 m | 1500 m |
| Price |
Specifications
| Temperature range | 0 - 100 °C |
| FOV | 19.63° x 14.71° |
| Display | External |
| Colour palettes | White-hot / black-hot / red-hot / iron red / night vision green / Birds |
| Magnification | 15X digital zoom |
| Battery | Up to 18 hours |
| Dimensions | 23 x 23 x 23.8 mm |
| Weight | 18.5 g (380 g with handle) |
Accessories
The Thermal Master X2 comes by default with:
- Handgrip (thermal camera integrated)
- Lightning extension cord
- 5000mAh 3.6V battery
- Allen key & screwdriver
- Fastening screws & pads
- Small carrying case (camera)
- Large carrying case (handgrip)
Downloads
| Thermal Master X2 datasheet |  (543.89 KB) | Download |
| Thermal Master X2 user manual | (2.91 MB) | Download |
