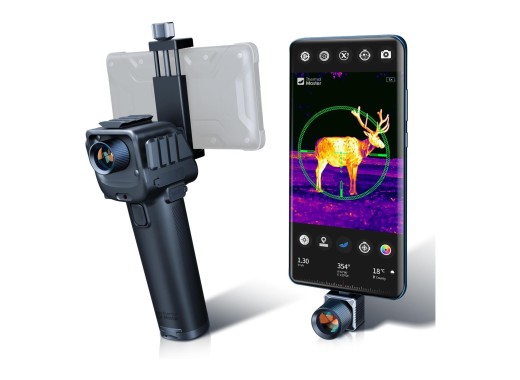

Thermal Master T2 Max thermal camera for Android
Promotion! This product is temporarily reduced in price. Offer valid while stocks last!
Details
The Thermal Master T2 Max thermal camera is a camera module that allows you to turn an Android smartphone into a thermal imaging camera. The T2 Max can see up to 1500 meters, which is a lot further than standard thermal imaging cameras. Together with the high frame rate of 50Hz to display fast movements clearly, this camera is great for outdoor use. The thermal camera displays heats signatures in different colour modes, but does not display temperature measurements on the interface. The camera has an IR resolution of 256x192 (49152 pixels), which can be increased to 512×384 using upscaling, and it has a 15x digital zoom. This model is only compatible with Android. Finally, night vision is included, and the T2 Max performs well in harsh environments like fog and rain.
Note: The thermal camera is by default integrated inside the handgrip. It is possible to attach the T2 Max directly to an Android USB-C port. We also offer an additional display.
Model overview
| Model | X2 (Android / iOS ) | X3 | T2 Max |
|---|---|---|---|
| Focal length | 13 mm | 15 mm | 15 mm |
| IR resolution | 256 x 192 (49152 pixels) | 384 x 288 (110592 pixels) | 256 x 192 (49152 pixels) |
| NETD | ≤ 40 mK | ≤ 25 mK | ≤ 20 mK |
| Frame rate | 50 Hz | 60 Hz | 50 Hz |
| Detection range | 900 m | 1500 m | 1500 m |
| Price |
Specifications
| Temperature range | 0 - 80 °C |
| FOV | 11.7 x 8.8° |
| Display | External |
| Colour palettes | White-hot / black-hot / red-hot / iron red / night vision green / Birds |
| Magnification | 15X digital zoom |
| Battery | Up to 18 hours |
| Dimensions | 33 x 25 x 35 mm |
| Weight | 35 g (400g with handgrip) |
Accessories
The Thermal Master T2 Max comes by default with:
- Handgrip (thermal camera integrated)
- USB-C extension cord
- 5000mAh 3.6V battery
- Small carrying case (camera)
- Large carrying case (handgrip)
Pros and cons
- NETD of 20mK
- 50Hz refresh rate
Downloads
| TM T2 Max datasheet |  (4.58 MB) | Download |
| TM T2 Max user manual | (2.63 MB) | Download |
